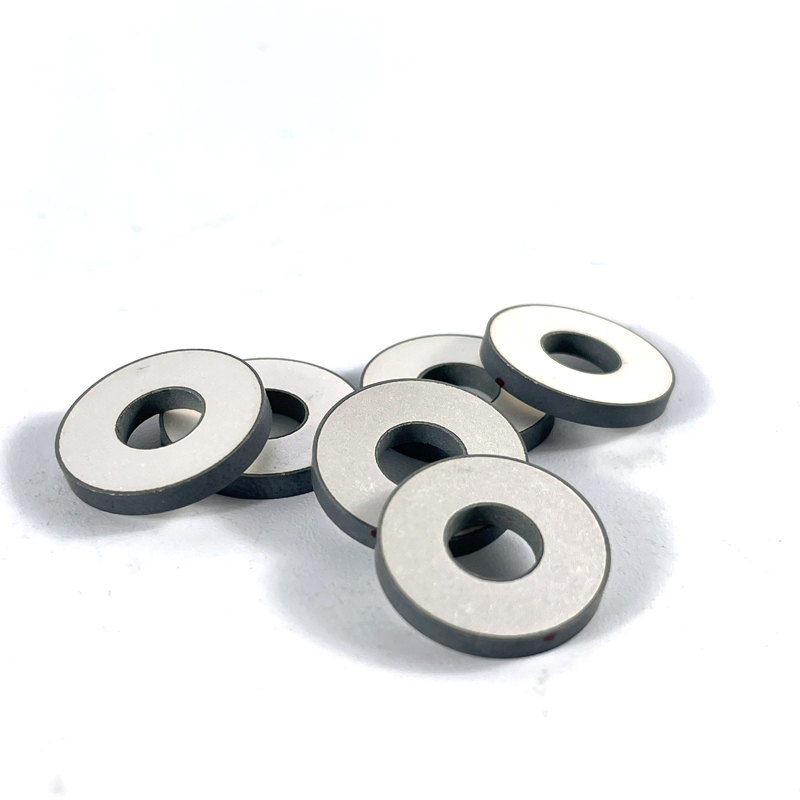

Vibration 45*15*5 Piezo Sensors PZT Rings Piezoelectric Ceramics Piezo Ceramic Ring Transducer 44 KHz
Circular piezoelectric ceramic sheets have a wide range of applications in many fields, with the most common being in the field of acoustics. Due to its excellent acoustic performance, circular piezoelectric ceramic sheets can be used as core components in equipment such as sound wave generators and sonar, for genera…
Circular piezoelectric ceramic sheets have a wide range of applications in many fields, with the most common being in the field of acoustics. Due to its excellent acoustic performance, circular piezoelectric ceramic sheets can be used as core components in equipment such as sound wave generators and sonar, for generating and receiving sound wave signals. In addition, circular piezoelectric ceramic sheets can also be applied in fields such as vibration control and sensors.
Circular piezoelectric ceramic sheets, as a special shaped piezoelectric ceramic sheet, have certain advantages in structure and performance, and have broad application prospects in many fields. With the continuous development of technology in the future, the application fields of circular piezoelectric ceramic sheets will be more extensive, and their performance will be further improved.
| spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
| PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
| PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
| PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
| PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
| PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
| PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
| PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
| PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
| PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
| PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
| PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
