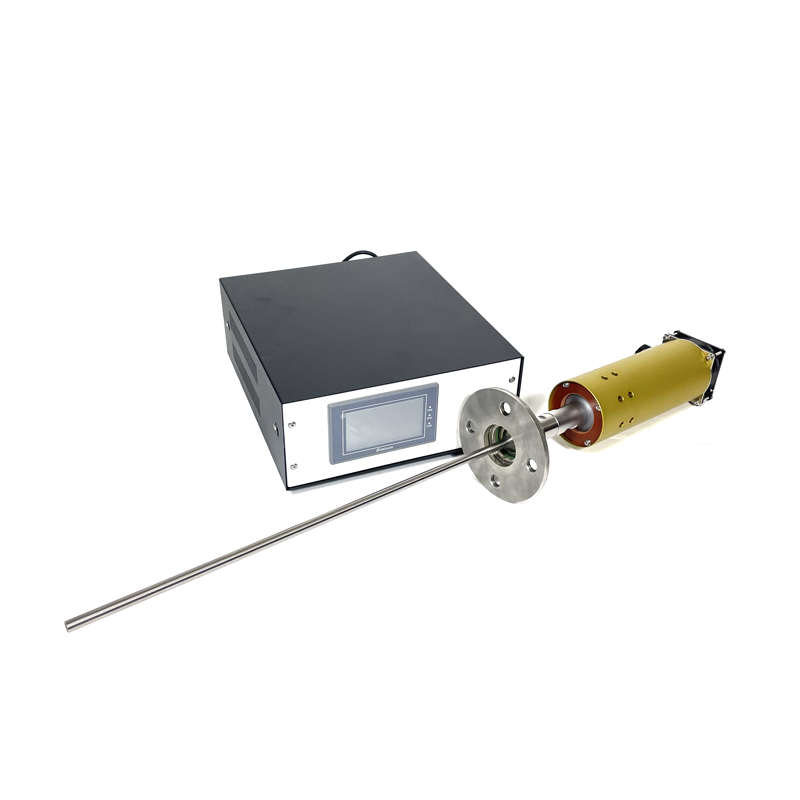

Ultrasonic Synthetic Extraction Reactor Ultrasonic And Microwave Combined Reaction System

Ultrasonic Synthetic Extraction Reactor Ultrasonic And Microwave Combined Reaction System

The ultrasonic vibrating rod is mainly applicable to the cleaning of the inner wall of various tube and cylinder structure vessels, such as online ultrasonic anti scaling of boilers, ultrasonic cleaning in vacuum/pressure situations, cleaning of the inner wall of metal pipes, and high-power sonochemistry processing fields, such as the extraction and separation of traditional Chinese medicine, synthesis and degradation, biodiesel production, microbial treatment, degradation of toxic organic pollutants, biodegradation treatment, biological cell crushing, dispersion and condensation, etc.

Ultrasonic vibration rods are widely used in the fields of ultrasonic homogenization, ultrasonic dispersion, ultrasonic emulsification, ultrasonic cell crushing, ultrasonic extraction and separation, ultrasonic exhaust, and accelerated chemical reactions of liquid liquid and liquid solid substances. Specific industries include:

1) Fuel: Emulsification of fuel oil mixed with water to save oil and reduce exhaust pollution.

2) Food: Emulsification of sugar added to milk, emulsification of shortening to produce high-grade lactose, dispersion of raw materials during sauce manufacturing, etc.

3) Cosmetics: Emulsification of wax, paraffin, and other oils, manufacturing detergents, shampoos, makeup water, and other fine particle dispersions.

4) Lubricant: Emulsification of rolling oil, manufacturing of emulsions used for cooling and lubrication during metal plate rolling.

5) Coatings: emulsification of waterproof coating agents for packaging, emulsification of polyethylene in water, emulsification of waterproof agents, and emulsification of resin processing liquids for fishing nets.

6) Chemical industry: Accelerate the rate of chemical reactions, disperse fluorescent and photosensitive materials in production, etc.

7) Medicine: Extraction of effective ingredients from Chinese herbal medicine.

8) Environmental protection: sewage treatment.

Tubular EquipmentType	Tubular TransducerType	Frequency(KHz)	UltrasoundOutput(W)	Total Length(mm)	Diameter(mm)	Static Capacity(pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
