Ultrasonic Plastic Welding Transducer For Pvc Abs Table Ultrasonic Plastic Welding Machine

Ultrasonic Plastic Welding Transducer For Pvc Abs Table Ultrasonic Plastic Welding Machine

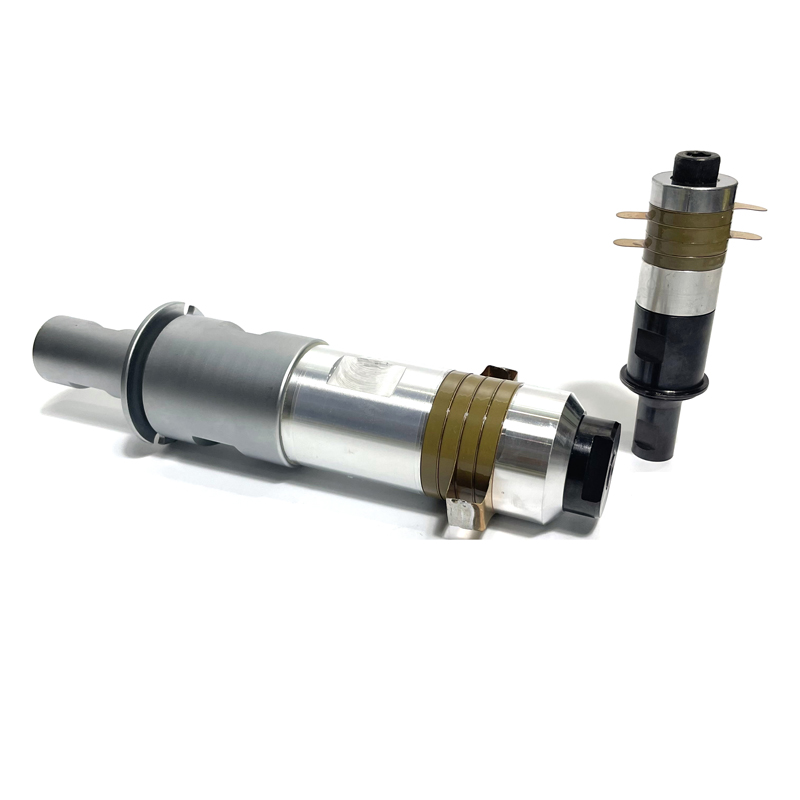

The Langzhiwan ultrasonic transducer produced by the company adopts piezoelectric ceramic components, imported materials, and carefully designed and processed mechanical products. At the same time, the ultrasonic transducer also has large amplitude, high electro-acoustic conversion rate, stable equipment working voltage, air and underwater operation, low heat generation, high reliability, convenient installation method, normal specification parameters, stable performance, and power circuit control The sensor and generator are characterized by damage protection, high output efficiency, stable switch structure, normal heating temperature, and long service life.

The function of an ultrasonic transducer is to convert the input electrical power into mechanical power (i.e. ultrasonic) and then transmit it, while consuming a small portion of its own function.

The transducer consists of a shell, matching layer, piezoelectric ceramic disc transducer, backing, outgoing cable, and a Cymbal array receiver. The piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material polarized in the thickness direction. The Cymbal array receiver consists of 8-16 Cymbal transducers, two metal rings, and rubber washers. The operating distance of the present invention is greater than 35m, and the frequency band width reaches 10kHz, which can detect high-speed moving long-distance targets.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
