![Ultrasonic Impedance Analyzer Tester 1kHz-500kHz Ultrasonic Impedance Analyzer](https://www.desktopultrasoniccleaner.com/wp-content/uploads/2023/04/2023041715182075.jpg)

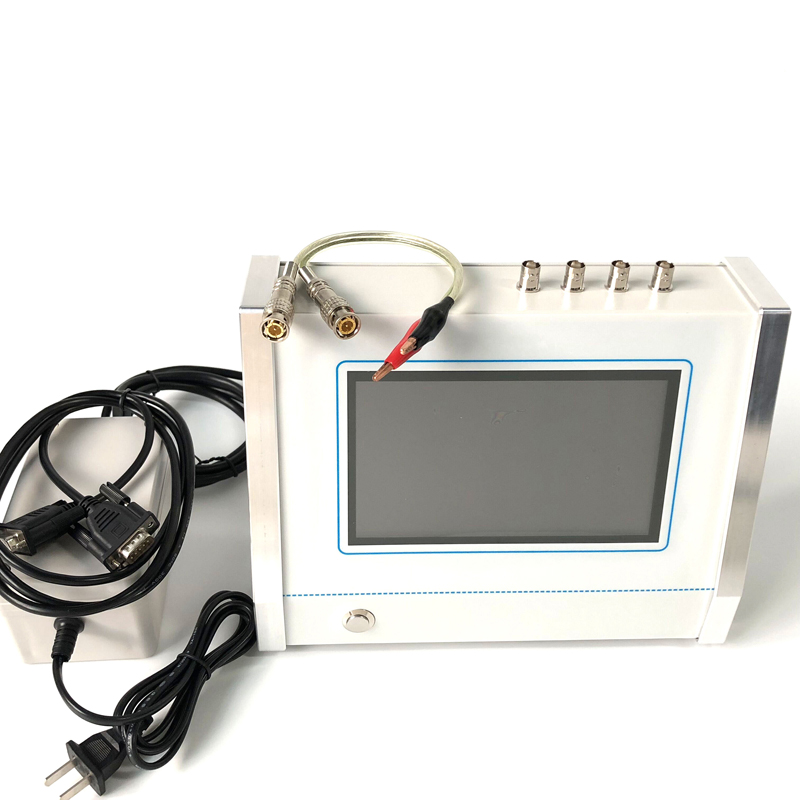

Ultrasonic Impedance Analyzer Tester 1kHz-500kHz Ultrasonic Impedance Analyzer
The Impedance analyzer is mainly used for impedance analysis and testing of ferroelectric crystals, piezoelectric ceramics, piezoelectric crystals, ultrasonic transducer and other devices. It is a solution for frequency scanning and impedance measurement and analysis of piezoelectric devices and equipment. It can qui…
Ultrasonic Impedance Analyzer Tester 1kHz-500kHz Ultrasonic Impedance Analyzer
The Impedance analyzer is mainly used for impedance analysis and testing of ferroelectric crystals, piezoelectric ceramics, piezoelectric crystals, ultrasonic transducer and other devices. It is a solution for frequency scanning and impedance measurement and analysis of piezoelectric devices and equipment. It can quickly and conveniently test the parameters and characteristics of piezoelectric devices. Some traditional models of ultrasonic Impedance analyzer in the market need to run software on the computer to realize scanning analysis function. In addition to the computer scanning analysis function, the ultrasonic Impedance analyzer also provides the analysis function of directly displaying the impedance frequency scanning curve of piezoelectric devices on the instrument. This way, customers no longer need to configure one computer for each instrument. This method not only ensures testing efficiency, but also reduces testing costs and facilitates customer use on the production line. At the same time, the product uses the principle of vector testing, which has good measurement accuracy, ultra wide frequency range, and good stability, and can meet the majority of measurement requirements for ultrasonic devices and materials.
The ultrasonic Impedance analyzer can scan graphics on the instrument, and can also directly copy the screen display graphics and test data on the instrument to the U disk. At the same time, the instrument comes with a computer software interface, and the standard version does not need to be purchased separately.
The ultrasonic Impedance analyzer is equipped with RS232C, USB DEVICE, USBHOST, HANDLER interfaces, and optional RS485 interface, GPIB interface. It can easily communicate with PC for data and remote control to form an automatic test system.
Type | PL-UIA500KHZ | PL-UIA1KHZ |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | All parameter, graphics |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed | 10 second/piece (equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |
Ultrasonic Impedance Analyzer Tester 1kHz-500kHz Ultrasonic Impedance Analyzer
