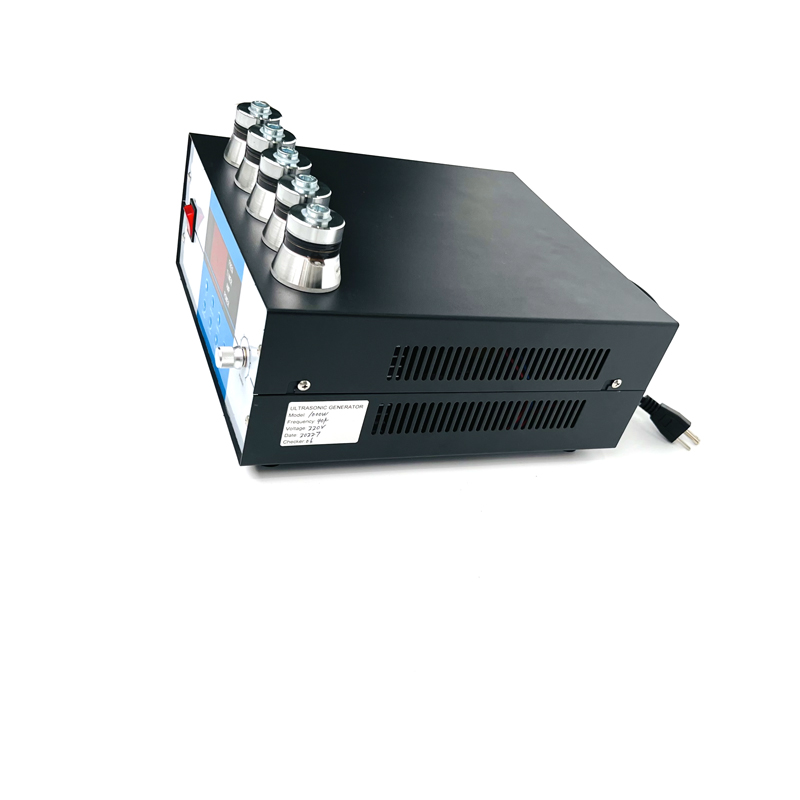

Ultrasonic Generator Frequency Control Box For Industrial Cleaning Tank
The Ultrasonic Generator adopts the latest independent control circuit, which greatly improves the ultrasonic density, makes the cleaning work more meticulous and has higher cleanliness. The Ultrasonic Power Generator has the frequency sweeping function. By sweeping the ultrasonic frequency back and forth within a re…
Ultrasonic Generator Frequency Control Box For Industrial Cleaning Tank
The Ultrasonic Generator adopts the latest independent control circuit, which greatly improves the ultrasonic density, makes the cleaning work more meticulous and has higher cleanliness. The Ultrasonic Power Generator has the frequency sweeping function. By sweeping the ultrasonic frequency back and forth within a reasonable range during the cleaning process, it drives the cleaning solution to form a slight reflux, so that the workpiece dirt can be quickly removed from the workpiece surface while being ultrasonic stripped, and the cleaning efficiency is improved. It is driven by imported high-power tubes, with a power factor of up to 95%, ensuring a strong output power. The dirt with strong adhesion can also be quickly removed. In the working state, real-time frequency tracking is realized. Ensure that the generator can maintain automatic frequency tracking at any time when the transducer frequency changes in the case of changes in water temperature, number of workpieces, cleaning agent, etc., to achieve the best working state matching the transducer frequency.
Unique function: Under the working state, it can realize the frequency tracking function in real time. Ensure that the generator can maintain automatic frequency tracking at any time when the transducer frequency changes in the case of changes in water temperature, number of workpieces, cleaning agent, etc., to achieve the best working state matching the transducer frequency.
Adjustment protection: during the adjustment process, set the safe adjustment current to ensure that there is no pipe burning during the adjustment process.
Cleaning effect: the ultrasonic cleaning density is the highest in the industry, the uniformity is the highest in the country, and the dead corner of the cleaning material.
Type | Power(W) | Frequency (KHz) | Siz |
PU-DGN300 | 300W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN600 | 600W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN900 | 900W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1000 | 1000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1200 | 1200W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1500 | 1500W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1800 | 1800W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN2000 | 2000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN2400 | 2400W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN3000 | 3000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
Ultrasonic Generator Frequency Control Box For Industrial Cleaning Tank
