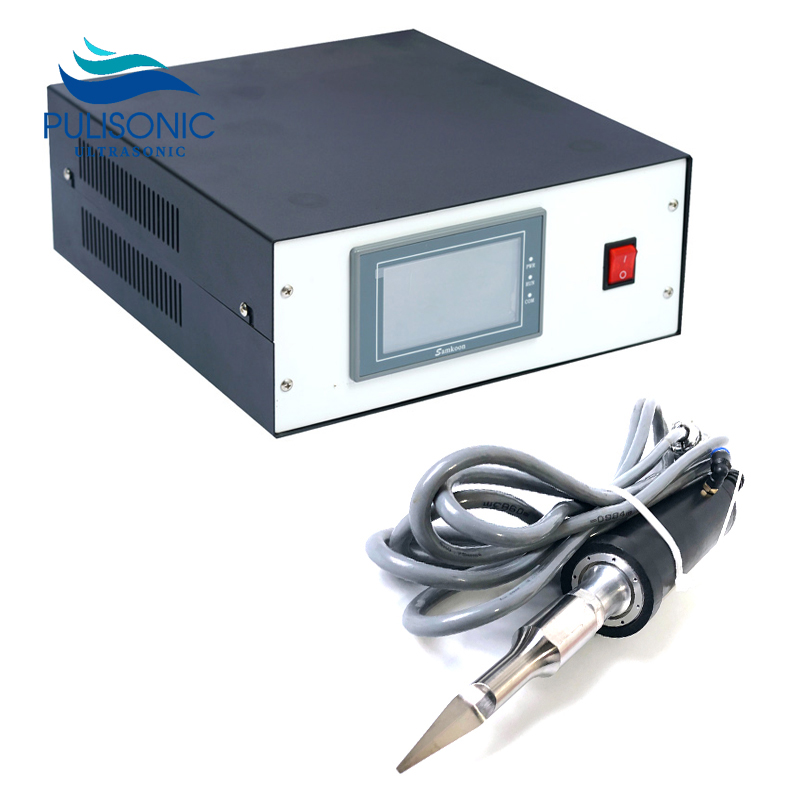

Ultrasonic Cutting Knife For Plastic And Rubber Handheld Portable Ultrasonic Knife Cutter

​ Ultrasonic cutting knife, also known as ultrasonic cutting machine, is an ultrasonic equipment specially used for cutting, and is one of the important categories of ultrasonic applications. The principle of ultrasonic cutting is completely different from that of traditional cutting. Ultrasonic cutting is to use the e…

Ultrasonic Cutting Knife For Plastic And Rubber Handheld Portable Ultrasonic Knife Cutter

Ultrasonic cutting knife, also known as ultrasonic cutting machine, is an ultrasonic equipment specially used for cutting, and is one of the important categories of ultrasonic applications. The principle of ultrasonic cutting is completely different from that of traditional cutting. Ultrasonic cutting is to use the energy of ultrasonic transducer to melt the local heat of the cut material, so as to achieve the purpose of cutting material. Therefore, ultrasonic cutting does not need sharp edges, nor does it need great pressure, and will not cause edge collapse and damage of the material to be cut. At the same time, due to the ultrasonic vibration of the cutting tool, the friction resistance is particularly small, and the material to be cut is not easy to stick to the blade. This is especially effective for cutting sticky and elastic materials, frozen materials, such as food, rubber, etc., or objects that are inconvenient to be pressurized.

Typepower
(W)
FrequencyWelding timeContains
PU-QG100W100W30khz,35khz,40khz0.1-3secgenerator , transducer ,horn,head
PU-QG300W300W30khz,35khz,40khz0.1-3secgenerator , transducer ,horn,head
PU-QG500W500W30khz,35khz,40khz0.1-3secgenerator , transducer ,horn,head

Ultrasonic Cutting Knife For Plastic And Rubber Handheld Portable Ultrasonic Knife Cutter
