Ultrasonic Cleaner Sound Intensity Measuring Instrument Meter Power Measuring Meter Ultrasonic Testing Equipment

Ultrasonic Cleaner Sound Intensity Measuring Instrument Meter Power Measuring Meter Ultrasonic Testing Equipment

With the continuous development of technology, ultrasound technology has been widely applied in various fields, such as medical imaging, non-destructive testing, environmental monitoring, etc. In these applications, ultrasonic sound intensity is an important physical quantity used to describe the distribution and intensity of sound energy in the ultrasonic field. Therefore, the development and application of ultrasonic sound intensity measurement instruments have received widespread attention.

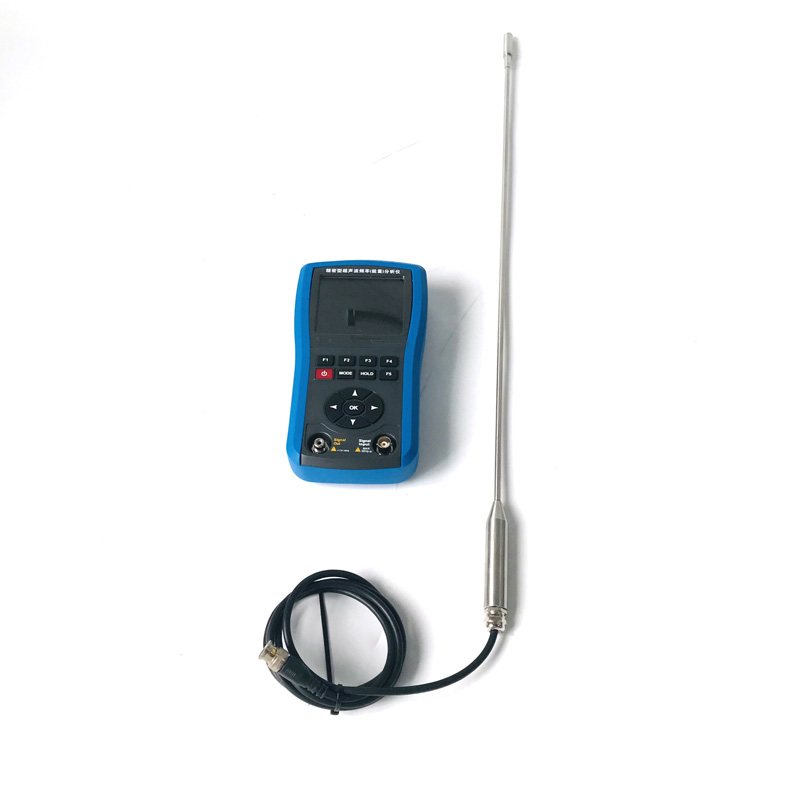

Ultrasonic sound intensity measuring instrument is a specialized instrument used to measure the sound intensity in an ultrasonic field. It usually consists of ultrasonic transducers, signal processing circuits, and display units. The ultrasonic transducer is responsible for receiving and transmitting ultrasonic waves, while the signal processing circuit processes and analyzes the received acoustic signals, ultimately displaying the sound intensity results on the display unit.

Range of Sound Intensity	0.1-150 W/cm²
Range of Frequency	10 Khz-1 Mhz
Service Temperature	0-100 °C (common) 0-500 °C (high temperature)
Service Medium	PH 4-PH 10 (liquid)
Supply Voltage	220V
The Response Duration	less than 0.1 second
Length of Probe	30cm 40cm 50cm 60cm (optional)
Material of The Prode	titanium
Size	10203 cm
Screen	LCD
Power Supply	9V Battery or External Power Supply
