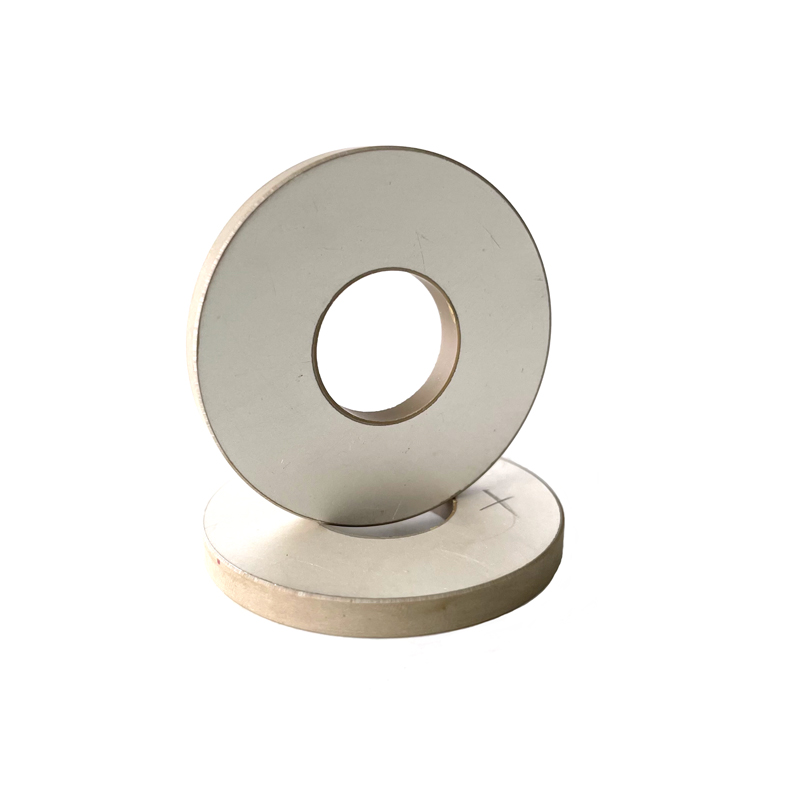

PZT Customize Ultrasonic Piezo Element Piezoelectric Ceramic Ring Various Size Ultrasonic Element Pzt Piezoelectric Ceramic
Ultrasonic sensor: By utilizing the piezoelectric effect of barium titanate piezoelectric ceramic sheets, various ultrasonic sensors can be manufactured for measuring parameters such as size, shape, and velocity of objects.Electronic components: Barium titanate piezoelectric ceramic sheets can be used as sensing and …
- Ultrasonic sensor: By utilizing the piezoelectric effect of barium titanate piezoelectric ceramic sheets, various ultrasonic sensors can be manufactured for measuring parameters such as size, shape, and velocity of objects.
- Electronic components: Barium titanate piezoelectric ceramic sheets can be used as sensing and driving components in electronic components, and are used to manufacture various electronic devices, such as filters, oscillators, transducers, etc.
- Medical field: By utilizing the acoustic properties and biocompatibility of barium titanate piezoelectric ceramic sheets, various medical devices can be manufactured, such as ultrasound imaging devices, ultrasound therapy devices, etc.
- Energy field: Barium titanate piezoelectric ceramic sheets can be used to manufacture various energy converter components, such as piezoelectric power generation devices, piezoelectric igniters, etc.
- Environmental protection field: By utilizing the sensing and driving performance of barium titanate piezoelectric ceramic sheets, various environmental protection equipment can be manufactured, such as air quality monitors, noise pollution control devices, etc.
| spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
| PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
| PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
| PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
| PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
| PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
| PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
| PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
| PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
| PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
| PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
| PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
Send Inquiry
