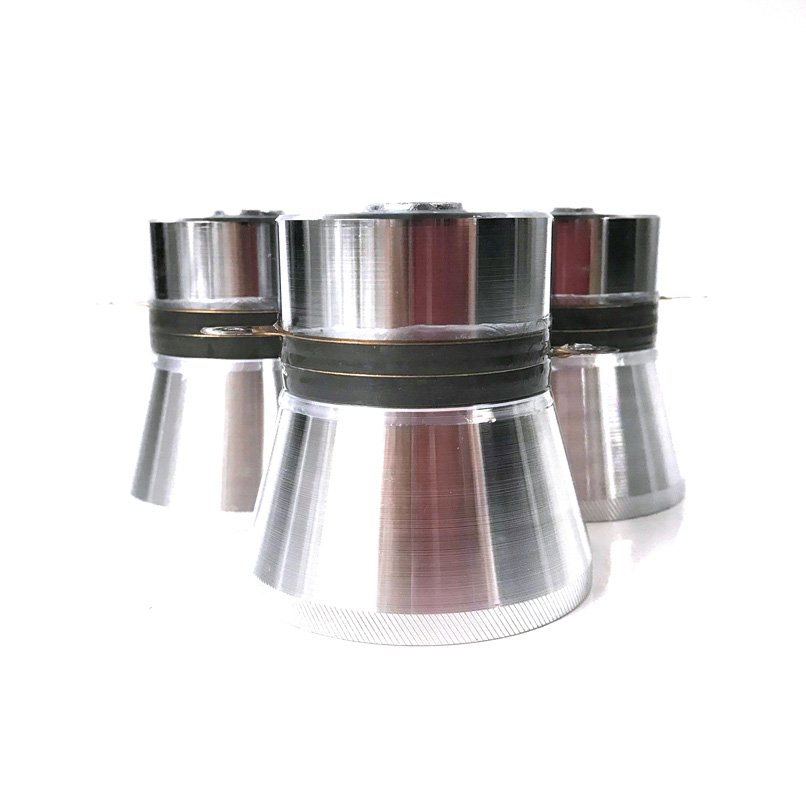

PZT-4 100W Ultrasonic Frequency Cleaning Transducer Ultrasonic Transducer For Industrial Ultrasonic Parts Cleaner
The ultrasonic cleaning transducer oscillator is mainly composed of piezoelectric ceramics, front and rear cover plates, and electrodes. Piezoelectric ceramics are the core components of the transducer oscillator, and their characteristics determine the performance of the oscillator. The front and rear cover plates s…
The ultrasonic cleaning transducer oscillator is mainly composed of piezoelectric ceramics, front and rear cover plates, and electrodes. Piezoelectric ceramics are the core components of the transducer oscillator, and their characteristics determine the performance of the oscillator. The front and rear cover plates serve to fix the piezoelectric ceramic and transmit vibration, while the electrodes are responsible for guiding electrical energy into the piezoelectric ceramic.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PU-UT-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PU-UT-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PU-UT-28120 PZT-4 | 66 | 720 | 28 | 10-20 | 7800 | 120 |
PU-UT-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
PU-UT-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PU-UT-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
PU-UT-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PU-UT-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PU-UT-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PU-UT-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PU-UT-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
PU-UT-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PU-UT-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PU-UT-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PU-UT-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PU-UT-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PU-UT-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PU-UT-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
标签:Ultrasonic Frequency Cleaning Transducer, Ultrasonic Transducer For Industrial Ultrasonic Parts Cleaner
