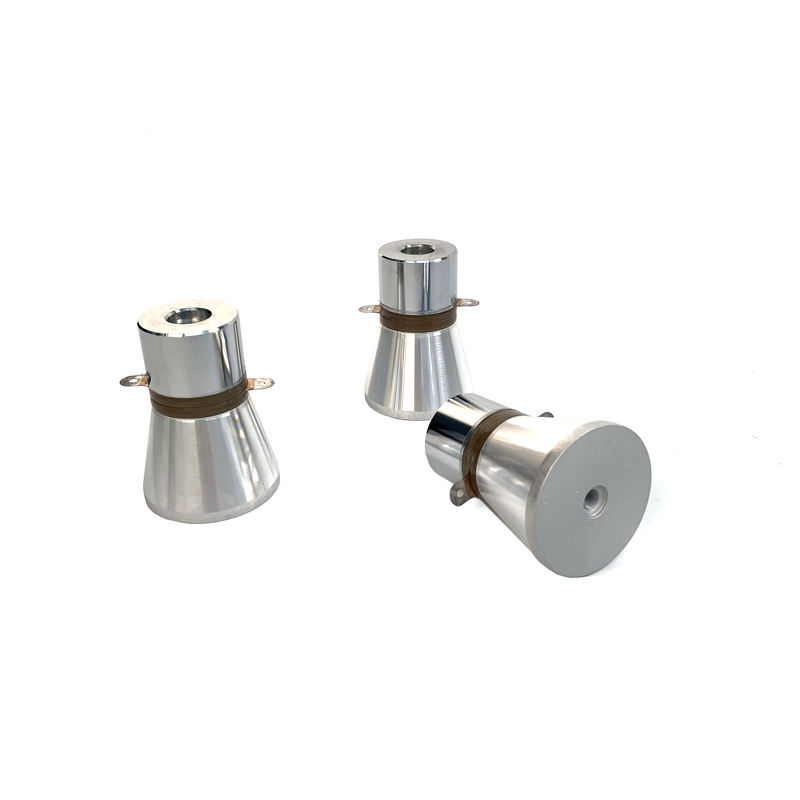

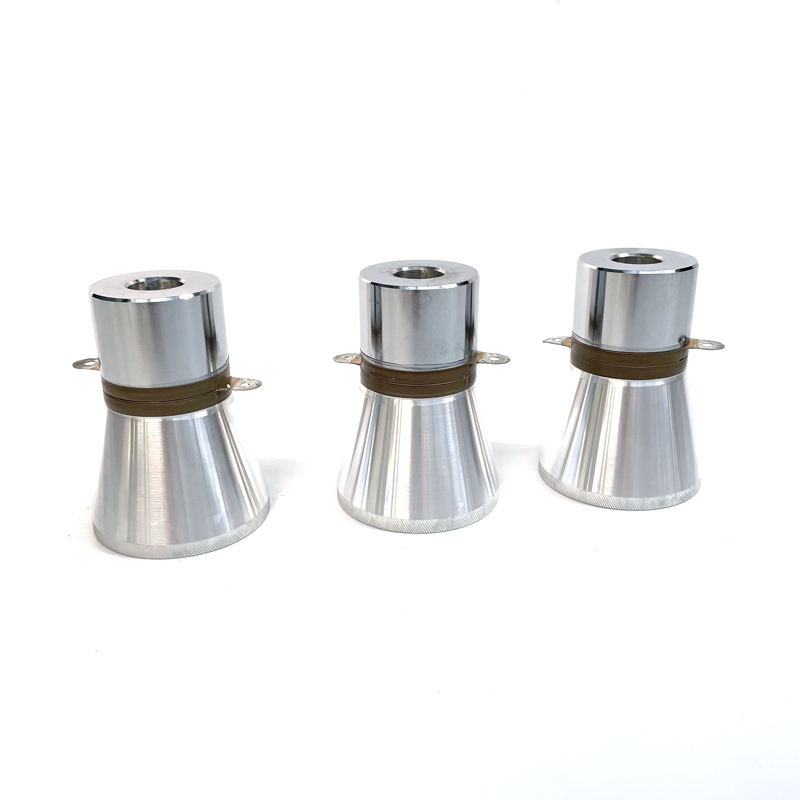

Piezoelectric Vibration Transducer 100w 25khz Ultrasonic Transducer For Cleaning Tank
The Ultrasonic Transducer produced by our company have low calorific value, good thermal stability, small resonance impedance, good consistency between frequency and static capacitance, and complete and smooth waveform of frequency and impedance.
Working principle of broadband ultrasonic vibrator transducer:
The ultrasonic wave is composed of a series of dense alternating longitudinal waves and propagates around through the liquid medium. When the sound energy is high enough, in the loose half cycle, the attraction between molecules in the liquid phase is broken and cavitation nuclei are formed. The life of cavitation nucleus is about 0.1 μ s. At the moment of explosion, it can generate a local high-temperature and high-pressure environment of about 4000K and 100MPa [6], and generate a micro jet with a speed of about 110m/s and strong impact force, which is called ultrasonic cavitation. The ultrasonic enhancement of chemical reaction and transfer process is mainly caused by the chemical and mechanical effects produced by ultrasonic cavitation.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PU-UT-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PU-UT-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PU-UT-28120 PZT-4 | 66 | 720 | 28 | 10-20 | 7800 | 120 |
PU-UT-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
PU-UT-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PU-UT-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
PU-UT-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PU-UT-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PU-UT-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PU-UT-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PU-UT-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
PU-UT-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PU-UT-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PU-UT-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PU-UT-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PU-UT-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PU-UT-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PU-UT-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
Piezoelectric Vibration Transducer 100w 25khz Ultrasonic Transducer For Cleaning Tank
