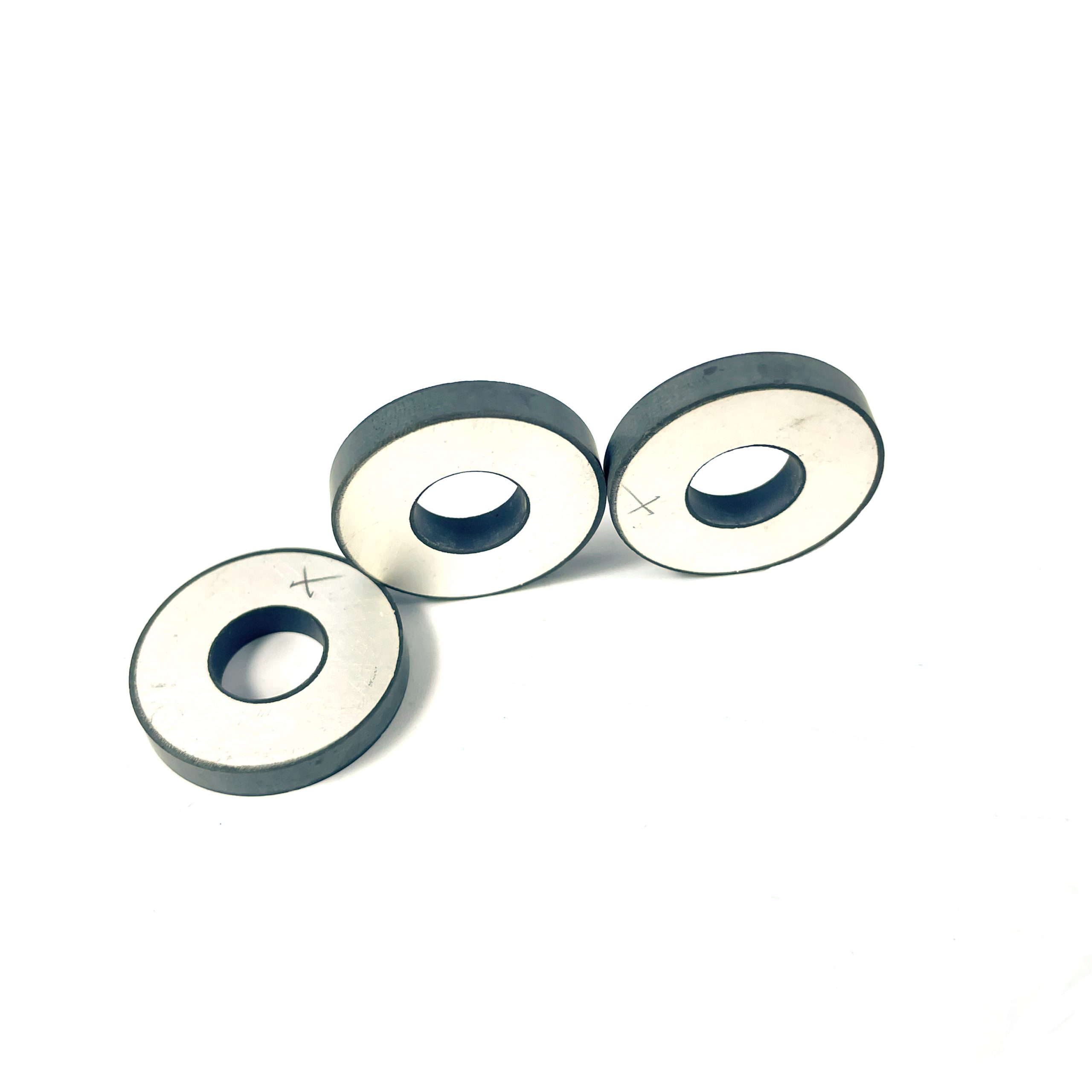

Piezoelectric ceramic Pzt8 Electric Piezo plate OD50mm rings for 20kHz 2000w Ultrasonic Welding Mask Machine

Piezoelectric ceramic Pzt8 Electric Piezo plate OD50mm rings for 20kHz 2000w Ultrasonic Welding Mask Machine

The frequency of piezoelectric ceramics fundamentally refers to the frequency of vibration, and during the entire process of stopping vibration at the vibration frequency, there will be various vibration specifications, which will have different steering directions. However, during the entire process of stopping steering of piezoelectric ceramics, there will be an inverse relationship. Therefore, the larger the diameter of the ceramic plate, the higher the frequency of the entire piezoelectric ceramic, Moreover, there are also various thicknesses in the subsequent steering frequency, which are also inversely proportional. The larger the thickness, the smaller the vibration frequency of the entire piezoelectric ceramic.

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)
PU-PC25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%
PU-PC225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%
PU-PC40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%
PU-PC40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%
PU-PC40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%
PU-PC50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%
PU-PC50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%
