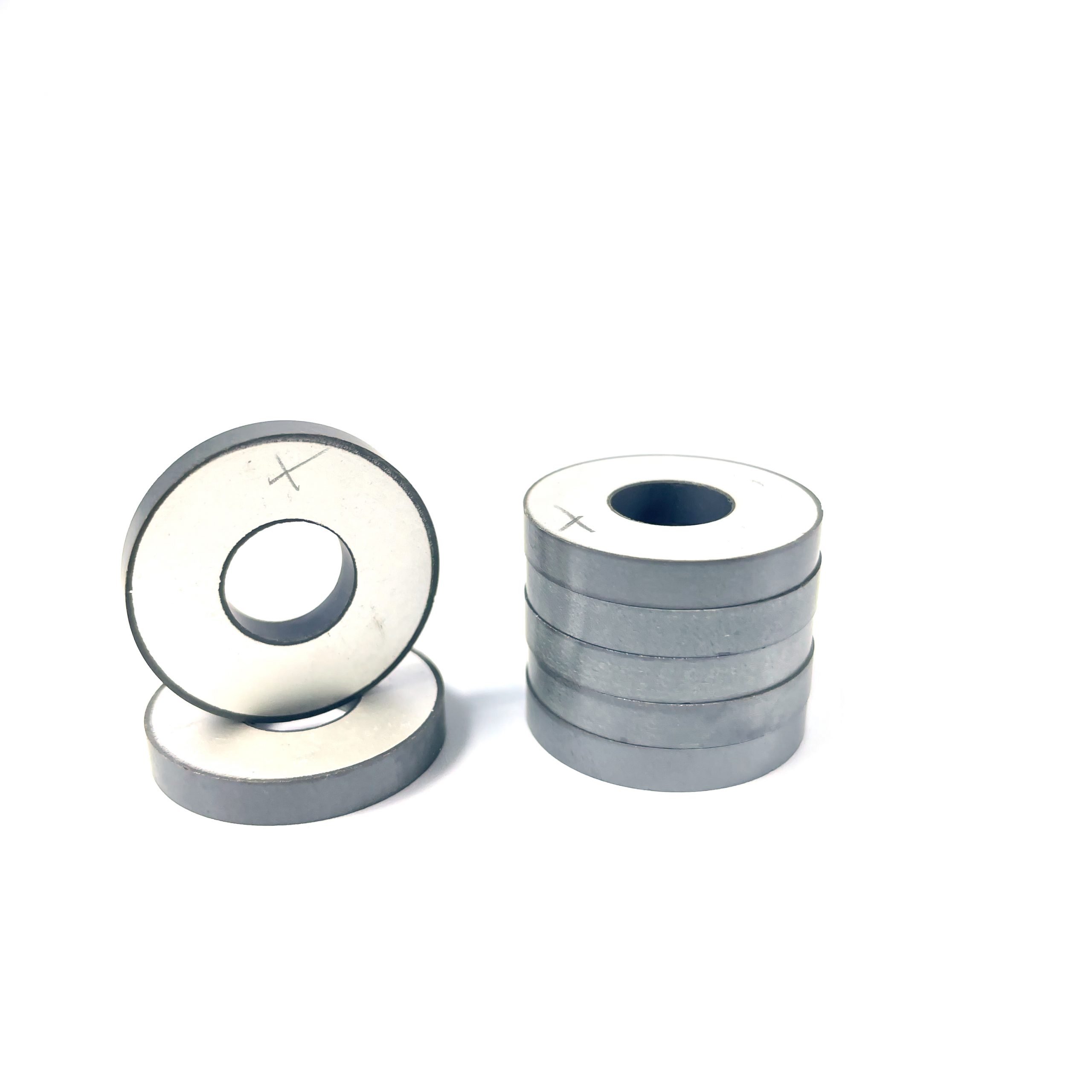

Piezo Injector Tester Dental Ultrasonic Piezo Scaler Element Medical Piezo Plate Piezoelectric Ceramic
Piezoelectric ceramics have different principles in the process of conversion. From the current situation, piezoelectric ceramics will basically be effectively converted through the action of sound waves. In the process of actual conversion of these piezoelectric ceramics, more inductive loads will be generated, and …
Piezoelectric ceramics have different principles in the process of conversion. From the current situation, piezoelectric ceramics will basically be effectively converted through the action of sound waves. In the process of actual conversion of these piezoelectric ceramics, more inductive loads will be generated, and even more vibrations can be generated through the Piezoelectricity of piezoelectric ceramics, And there will be more sound wave emissions, of course, the conversion of the entire piezoelectric ceramic also has different conversion work, and there will be more usage standards.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
标签:Medical Piezo Plate Piezoelectric Ceramic, Piezo Injector Tester Dental Ultrasonic Piezo Scaler Element
