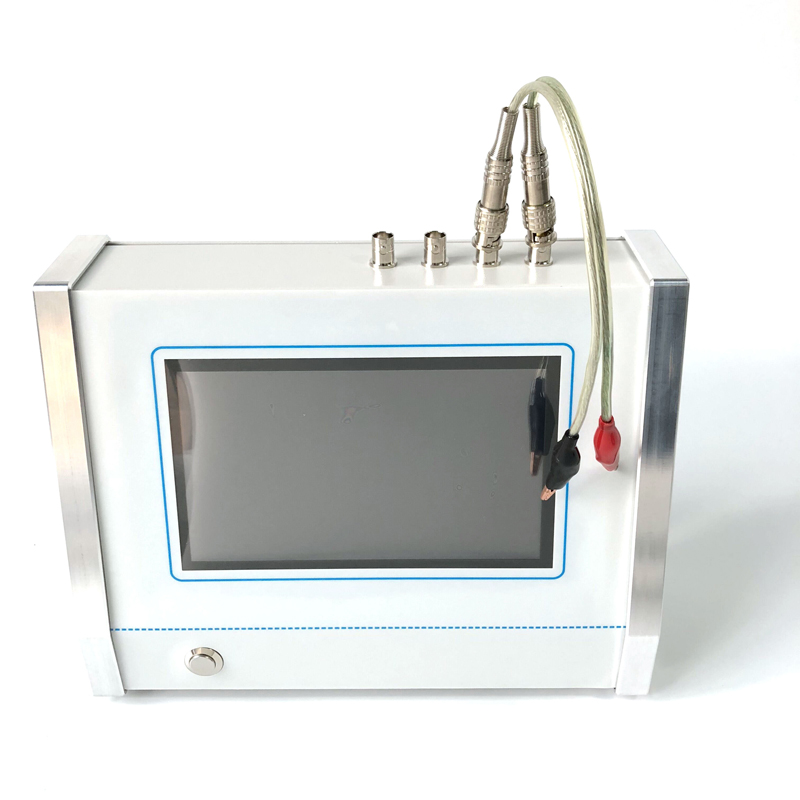

Industrial Grade Ultrasonic Frequency Impedance Graphical Analyzer For Testing Ultrasonic Transducers
The upper computer of the impedance analyzer provides 7 basic circuit models to equivalent these devices. This software also provides automatic matching function, which means that if the tested piece is a black box, the software automatically matches the model that best matches it and calculates parameters. You can c…
The upper computer of the impedance analyzer provides 7 basic circuit models to equivalent these devices. This software also provides automatic matching function, which means that if the tested piece is a black box, the software automatically matches the model that best matches it and calculates parameters. You can compare the impedance fitting curve of the simulated equivalent circuit parameter values with the actual measured impedance curve, and also fit according to the model you choose based on the parameters you input. The equivalent circuit model of this function can be directly output as a TXT document for users to save and use.
Type | PL-UIA500KHZ | PL-UIA1KHZ |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | All parameter, graphics |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed | 10 second/piece (equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |
