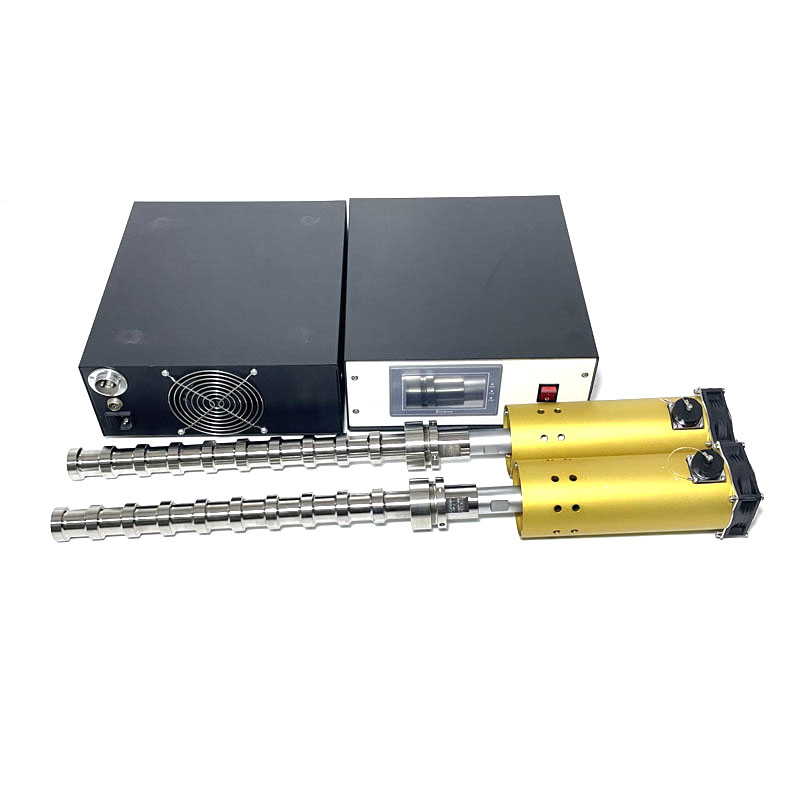

Industrial 3000W Animal Fat Oil Emulsify Ultrasonic Biodiesel Processor Homogenizer Machine For Nanoemulsion
In recent years, the process of industrialization and urbanization in China has accelerated, and a large amount of industrial wastewater, domestic wastewater, and organic pollutants from natural precipitation have been discharged into rivers, causing persistent pollution of water resources. Ultrasonic vibrating rod t…
In recent years, the process of industrialization and urbanization in China has accelerated, and a large amount of industrial wastewater, domestic wastewater, and organic pollutants from natural precipitation have been discharged into rivers, causing persistent pollution of water resources. Ultrasonic vibrating rod technology is a new pollution control technology that uses strong oxidizing hydroxyl radical generated in chemical reaction or physical process to oxidize toxic organic pollutants.
Compared with the energy density of the cavitation bubble collapse, the energy density of the ultrasonic vibration rod has been increased by trillions of times, causing a huge concentration of energy; The sonochemistry phenomenon and sonoluminescence caused by high temperature and high pressure generated by cavitation bubbles are unique forms of energy and material exchange in sonochemistry. Therefore, ultrasonic vibrating rod plays an increasingly important role in chemical extraction, biodiesel production, organic synthesis, microbial treatment, degradation of toxic organic pollutants, chemical reaction speed and yield, catalytic efficiency of catalyst, biodegradation treatment, ultrasonic scale prevention and descaling, biological cell crushing, dispersion and agglomeration, and sonochemical reaction. The principles and effects of organic pollutant degradation technology, as well as the current situation and development trends at home and abroad, point out that the “cavitation” effect of ultrasound is its main mechanism of action. Ultrasound, combined with other effects (such as ultraviolet radiation and catalytic oxidation), can greatly accelerate and improve the mineralization of organic pollutants. In the treatment of difficult to degrade and toxic and harmful organic pollutants, especially in purifying the environment There is great potential for application in the treatment of priority controlled pollutants
The ultrasonic vibrating rod is composed of three parts: ultrasonic vibrating parts, ultrasonic driving power supply and reactor. The ultrasonic vibrating parts mainly include high-power ultrasonic transducer, amplitude transformer, tool head (transmitter), which are used to generate ultrasonic vibration and emit this vibration energy into the liquid. The transducer converts the input electrical energy into mechanical energy, which is ultrasound. Its manifestation is that the transducer moves back and forth in the longitudinal direction, with an amplitude typically of a few micrometers. This amplitude power density is not sufficient and cannot be directly used. The amplitude transformer amplifies the amplitude according to the design requirements, isolates the reaction solution and transducer, and also serves to fix the entire ultrasonic vibration system. The tool head is connected to a variable amplitude rod, which transmits ultrasonic energy vibration to the tool head, which then emits the ultrasonic energy into the chemical reaction liquid.
Tubular EquipmentType | Tubular TransducerType | Frequency(KHz) | UltrasoundOutput(W) | Total Length(mm) | Diameter(mm) | Static Capacity(pF±10%) |
PU-UE1 | US-61 | 15-28 | 1000 | 500 | Φ50-55 | 68000 |
PU-UE5 | US-25 | 15-28 | 1500 | 850 | Φ50-55 | 68000 |
PU-UE6 | US-16 | 15-28 | 2000 | 1100 | Φ50-55 | 132000 |
标签:Industrial 3000W Animal Fat Oil Emulsify Ultrasonic Biodiesel Processor Homogenizer Machine, Ultrasonic Biodiesel Processor Homogenizer Machine For Nanoemulsion
Send Inquiry
