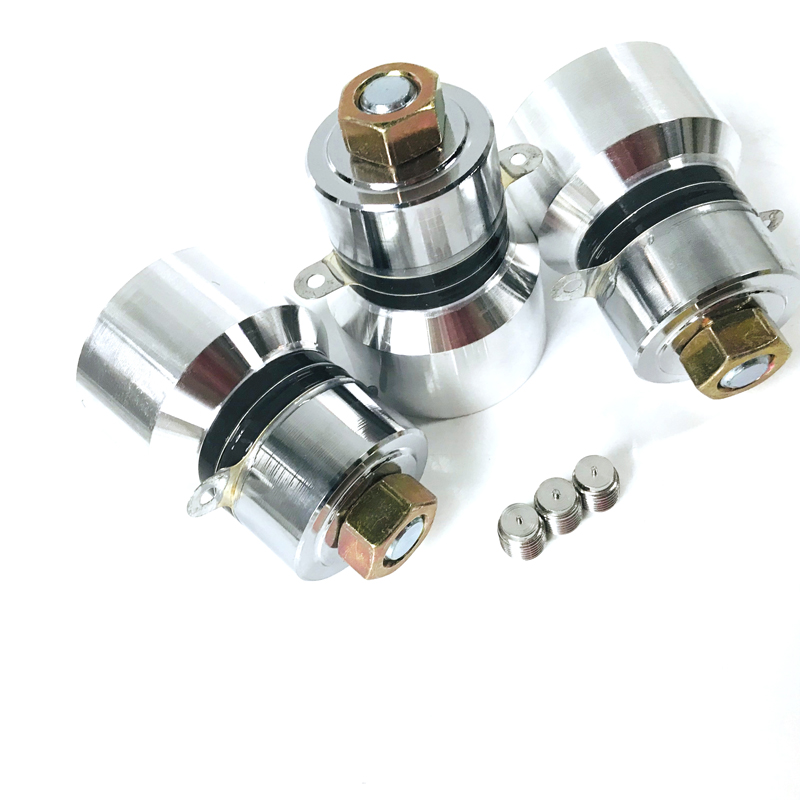

High Frequency Ultrasonic Power Frequency Transducer Ultrasonic Cleaning Transducer For Laboratory Ultrasonic Bath Cleaner
The application of high-frequency ultrasonic cleaning of transducer oscillators is very extensive, not only occupying an important position in industrial manufacturing, but also playing an irreplaceable role in medical, scientific research and other fields. In industrial production, high-frequency ultrasonic cleaning…
The application of high-frequency ultrasonic cleaning of transducer oscillators is very extensive, not only occupying an important position in industrial manufacturing, but also playing an irreplaceable role in medical, scientific research and other fields. In industrial production, high-frequency ultrasonic cleaning of transducer oscillators is often used to clean various components and products, such as precision mechanical parts, electronic components, optical instruments, etc. These items often have impurities such as oil, dust, and oxides on their surfaces, which are difficult to completely remove using traditional cleaning methods. The high-frequency ultrasonic cleaning transducer oscillator can quickly remove stains and dirt from the surface of objects through its powerful impact force, achieving efficient and fast cleaning effects.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PLS-QXHNQ20100 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PLS-QXHNQ25100 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PLS-QXHNQ28100 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PLS-QXHNQ2560 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PLS-QXHNQ2860 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PLS-QXHNQ2850 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PLS-QXHNQ3360 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PLS-QXHNQ4060 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PLS-QXHNQ4050 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PLS-QXHNQ5435 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PLS-QXHNQ6860 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PLS-QXHNQ68120 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PLS-QXHNQ8060 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PLS-QXHNQ12060 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PLS-QXHNQ13550 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
