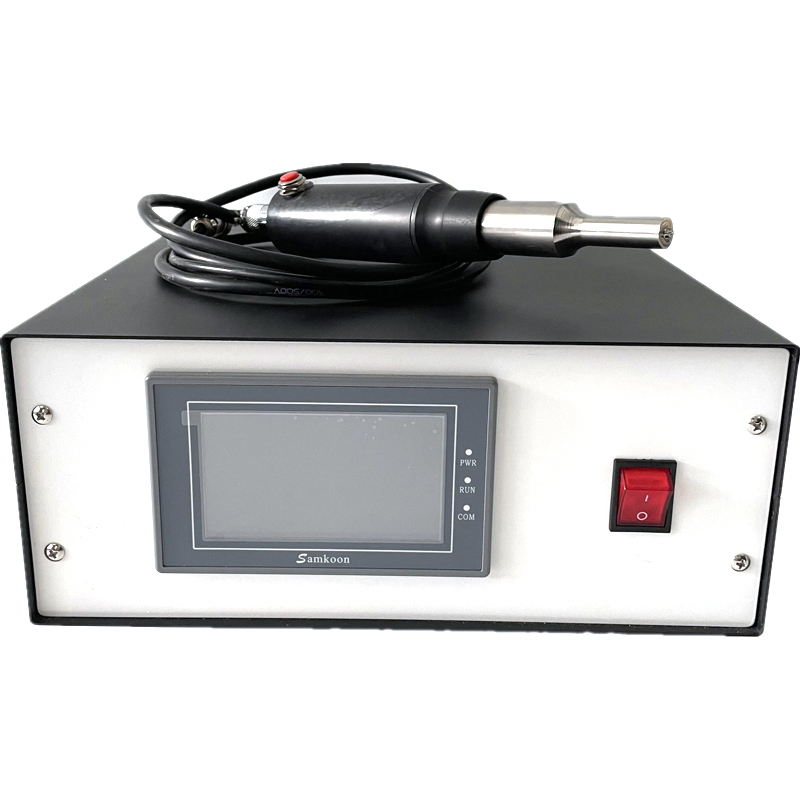

Handheld Spot Welder Hot Sale 28Khz Portable Ultrasonic Spot Welder Handheld Spot Welding Machine
The main components include the ultrasonic generator, ultrasonic transducer, horn, welding head triplet, mold and frame. The transducer converts the input electrical energy into mechanical energy, which is manifested by the transducer moving back and forth in the longitudinal direction, with an amplitude generally of a few microns. However, this amplitude power density is not sufficient and cannot be directly used. The ultrasonic amplitude transformer device amplifies this amplitude power, allowing the amplified amplitude to be used. The tool head is connected to the transformer rod, which transmits the ultrasonic energy vibration to the tool head, which then emits the ultrasonic energy to the welding area.
Common problems with traditional mask welding technology:
- High temperature welding can easily cause damage to the welding surface, and in severe cases, it can also cause product deformation.
- Welding equipment has a large volume and is not easy to operate by hand, making it difficult to complete complex processes.
- The welding mode is too single, with significant limitations on the welding material and the inability to freely replace the welding head.
- Use adhesive and flux for welding, and the welding pollution is serious, and the welding strength is not high.
- The use of adhesives, nails, or other mechanical fixation during welding is inefficient and costly.
Type | power (W) | Frequency | Welding time | Contains |
PU-HH300W | 300W | 20khz,28khz,30khz,35khz,40khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH500W | 500W | 20khz,28khz,30khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH900W | 900W | 20khz,28khz,30khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH1000W | 1000W | 20khz,28khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH1200W | 1200W | 20khz,28khz | 0.1-3sec | generator , transducer ,horn,head |
Handheld Spot Welder Hot Sale 28Khz Portable Ultrasonic Spot Welder Handheld Spot Welding Machine
标签:28Khz Portable Ultrasonic Spot Welder Handheld Spot Welding Machine, Ultrasonic Spot Welder Handheld Spot Welding Machine
