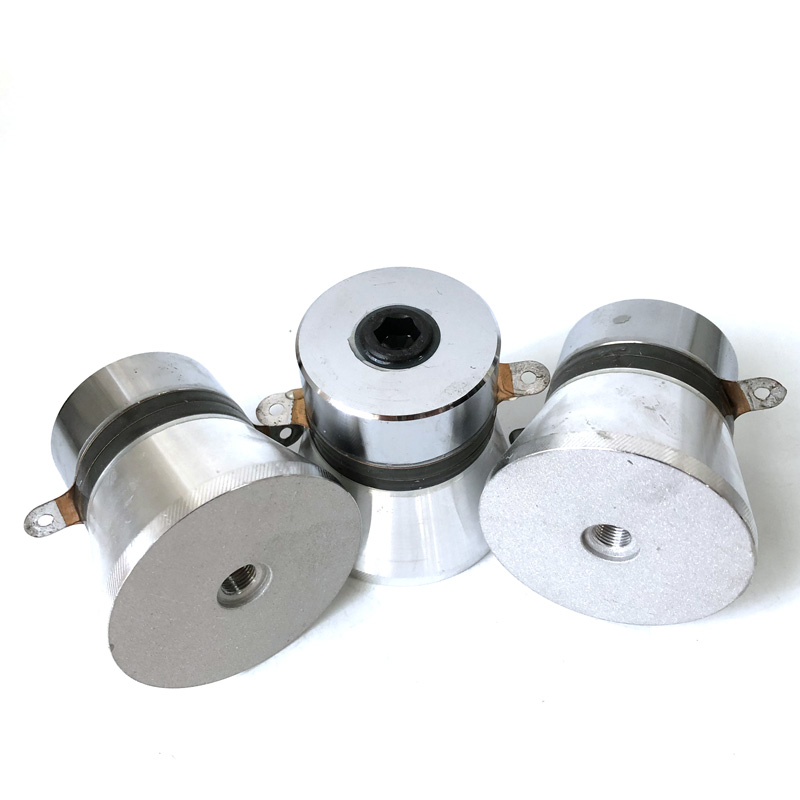

Dual Frequency Industrial Piezoceramic Ultrasonic Transducer Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
Dual frequency ultrasonic cleaning transducer is an efficient and advanced cleaning equipment widely used in various industrial fields. It achieves the purpose of cleaning by generating high-frequency vibration waves to quickly remove dirt and impurities from the surface of the cleaned object. The dual frequency ultr…
Dual frequency ultrasonic cleaning transducer is an efficient and advanced cleaning equipment widely used in various industrial fields. It achieves the purpose of cleaning by generating high-frequency vibration waves to quickly remove dirt and impurities from the surface of the cleaned object. The dual frequency ultrasonic cleaning transducer utilizes the characteristics of ultrasonic propagation in liquids to convert electrical energy into mechanical energy through the transducer, generating high-frequency vibration waves. When these vibration waves propagate in the liquid, they will have a strong impact and micro jet effect on the surface of the cleaned object, thereby stripping away the dirt and impurities on the surface of the object. At the same time, the dual frequency ultrasonic cleaning transducer also has two different frequencies of ultrasonic vibration, which can alternate during the cleaning process, further improving the cleaning effect.
The characteristics of dual frequency ultrasonic cleaning transducers:
- Efficiency: The dual frequency ultrasonic cleaning transducer can quickly remove dirt and impurities on the surface of objects in a short period of time through the action of high-frequency vibration waves, greatly improving cleaning efficiency.
- Environmental friendliness: The equipment does not require the use of chemical cleaning agents during the cleaning process, avoiding chemical pollution and complying with the concept of green environmental protection.
- Wide applicability: The dual frequency ultrasonic cleaning transducer is suitable for cleaning objects of various shapes and materials, such as metal, plastic, glass, etc.
- Easy to operate: The equipment has a high degree of automation, is easy to operate, and can reduce the labor intensity of workers.
Type | Full length(mm) | weight(g) | FR (khz) | impedance(Ω) | CP(Pf)±10% | power(w) |
PT-UT38/80 KHZ P 4 | 61 | 330 | 38/80 | <35 | 4800 | 50 |
PT-UT40/100KHZ P 4 | 54 | 280 | 41/100 | <50 | 5200 | 40 |
PT-UT50K P4 | 42 | 135 | 50 | <35 | 3200 | 25 |
PT-UT28/83/130 KHZ P 4 | 70 | 480 | 28/83/130 | <30 | 5000 | 30 |
PT-UT25/45/80KHZ P4 | 78 | 540 | 25/45/80 | <30 | 5000 | 30 |
PT-UT33/89/135KHZ P4 | 60 | 430 | 33/89/135 | <30 | 5000 | 40 |
PT-UT28/41/123KHZ P4 | 68 | 630 | 28/41/123 | <35 | 6800 | 60 |
PT-UT40/80/120K | 56 | 260 | 120 | <35 | 5400 | 30 |
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K | 81 | 465 | 28/50/60/70/84 | <35 | 5000 | 30 |
PT-UT40/77/100/170KHZ P4 | 55 | 270 | 40/77/100/170 | <30 | 4000 | 30 |
标签:Industrial Piezoceramic Ultrasonic Transducer, Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
