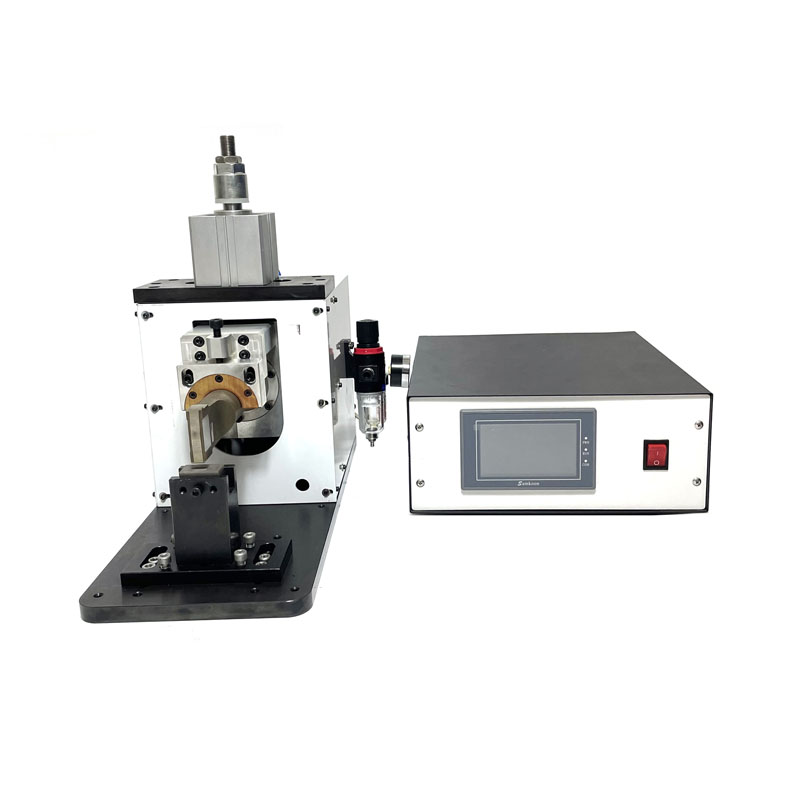

Copper Wire Harness Assembly Ultrasonic Welding Machine For Metal cable Line Soldering
Ultrasonic metal welding is a special method to connect the same metal or different metals by using the mechanical vibration energy of ultrasonic frequency. When conducting ultrasonic welding, metal neither transmits current to the workpiece nor applies high temperature heat source to the workpiece, but only converts…
Copper Wire Harness Assembly Ultrasonic Welding Machine For Metal cable Line Soldering
Ultrasonic metal welding is a special method to connect the same metal or different metals by using the mechanical vibration energy of ultrasonic frequency. When conducting ultrasonic welding, metal neither transmits current to the workpiece nor applies high temperature heat source to the workpiece, but only converts mechanical energy into internal energy under static pressure Deformation energy and limited temperature rise. Solid-phase welding occurs when the two base materials reach the recrystallization temperature. Therefore, it effectively overcomes the phenomena of splashing and oxidation generated during resistance welding. Ultrasonic metal welding machines can perform single point welding, multi-point welding, and short strip welding on fine wires or thin materials of non-ferrous metals such as copper, silver, aluminum, and nickel. They can be widely used in thyristor leads, fuse strips, electrical leads, and lithium battery electrodes Welding of pole ears.
Type | Power(W) | Frequency (KHz) |
PU-MSW2000W | 2000W | 20KHZ |
PU-MSW2600W | 2600W | 20KHZ |
PU-MSW3200W | 3200W | 20KHZ |
PU-MSW4000W | 4000W | 20KHZ |
PU-MSW800W | 800W | 40khz |
Copper Wire Harness Assembly Ultrasonic Welding Machine For Metal cable Line Soldering
标签:Copper Wire Harness Assembly Ultrasonic Welding Machine, Ultrasonic Welding Machine For Metal cable Line Soldering
Send Inquiry
