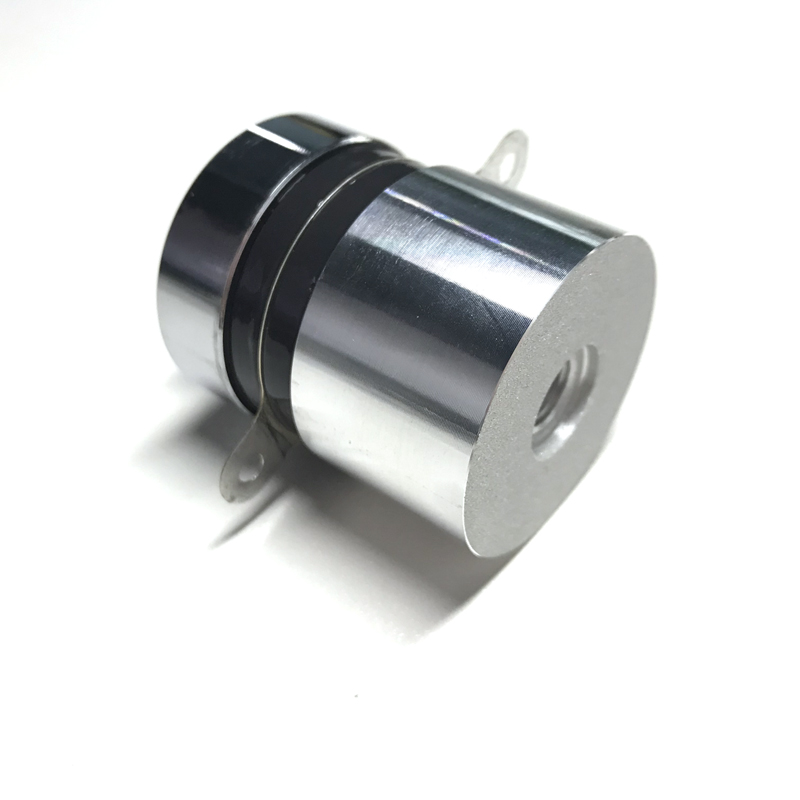

90KHZ 60W Ultrasonic Vibrating High Frequency Ultrasonic Cleaner Transducer For Heated Ultrasonic Parts Cleaner
Characteristics of ultrasonic vibrator treansducer: Low calorific value: low calorific value is one of the characteristics of high-quality ultrasonic cleaning vibrator transducer. The vibrator converts the current into ultrasonic wave. If the vibrator has low calorific value in the process of working, it means tha…
Characteristics of ultrasonic vibrator treansducer:
Low calorific value: low calorific value is one of the characteristics of high-quality ultrasonic cleaning vibrator transducer. The vibrator converts the current into ultrasonic wave. If the vibrator has low calorific value in the process of working, it means that it has less heat, that is, it consumes less electricity when converting the current into ultrasonic energy, which will greatly increase the current conversion rate, save energy and reduce costs.
Super strong vibration: The performance of super strong vibration is a feature that high-quality ultrasonic cleaner vibrator should have. The better the ultrasonic transducer is, the more severe the vibration will be. In other words, the more powerful it is, the better the energy conversion rate will be. They are mutually unified. If one party exists, it will naturally show the existence of the other party.
Stable performance: performance is an important feature of high-quality ultrasonic cleaning machine vibrator. Stable performance is mainly shown in stable output, that is, after energy conversion, the energy output is applied to the next step of machine operation, and the output process has good quality assurance, so that the next step of machine operation is not affected, or the next step of machine operation is improved.
Advantages of ultrasonic vibrator:
Good external performance of ultrasonic vibrator: good cavitation effect of ultrasonic cleaner is the characteristic of high-quality ultrasonic cleaner vibrator, and cavitation effect determines the effect of ultrasonic cleaner cleaning objects. In short, good cavitation effect of ultrasonic cleaner is good, and its cleaning effect is good, but its cavitation effect is poor, and its cleaning effect is poor.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PLS-QXHNQ20100 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PLS-QXHNQ25100 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PLS-QXHNQ28100 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PLS-QXHNQ2560 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PLS-QXHNQ2860 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PLS-QXHNQ2850 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PLS-QXHNQ3360 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PLS-QXHNQ4060 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PLS-QXHNQ4050 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PLS-QXHNQ5435 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PLS-QXHNQ6860 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PLS-QXHNQ68120 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PLS-QXHNQ8060 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PLS-QXHNQ12060 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PLS-QXHNQ13550 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
