![80KHZ High Frequency Industrial Piezoceramic Ultrasonic Transducer Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine](https://www.desktopultrasoniccleaner.com/wp-content/uploads/2024/05/2024050908242678.jpg)

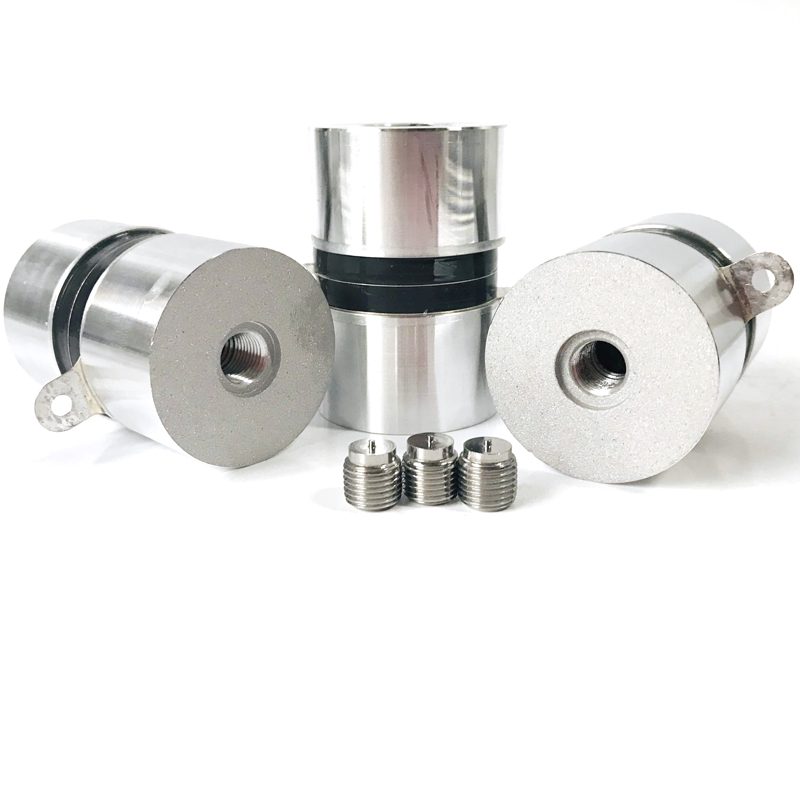

80KHZ High Frequency Industrial Piezoceramic Ultrasonic Transducer Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
The high-frequency ultrasonic cleaning transducer, as a treasure of contemporary industrial cleaning technology, has a magical working principle. It generates high-frequency ultrasound waves, which, when propagating in liquids, form countless tiny bubbles. These bubbles generate a strong impact force during their rap…
The high-frequency ultrasonic cleaning transducer, as a treasure of contemporary industrial cleaning technology, has a magical working principle. It generates high-frequency ultrasound waves, which, when propagating in liquids, form countless tiny bubbles. These bubbles generate a strong impact force during their rapid expansion and contraction, like countless tiny hammers continuously striking the surface of the cleaned object. This impact and peeling effect can penetrate into the tiny gaps and surface bumps of objects, thoroughly cleaning away difficult to reach dirt and grease.
The advantage of high-frequency ultrasonic cleaning transducers lies in their high efficiency, environmental protection, and energy-saving characteristics. Compared with traditional cleaning methods, it does not require the use of a large amount of chemical cleaning agents, reducing the generation of wastewater and waste, thus achieving the goal of environmental protection. Meanwhile, due to its unique cleaning method, the cleaning task can be completed in a short time, greatly improving work efficiency. In addition, ultrasonic cleaning can also reduce energy consumption during the cleaning process, achieving energy conservation and emission reduction.
Due to these advantages, high-frequency ultrasonic cleaning transducers are widely used in various industrial fields, such as automotive manufacturing, electronics industry, medical equipment, etc. In these fields, whether it is precision components or complex equipment structures, ideal cleaning effects can be achieved through ultrasonic cleaning. In the future, with the continuous progress of technology, high-frequency ultrasonic cleaning transducers are expected to play their unique role in more fields, bringing greater convenience and benefits to industrial production.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PLS-QXHNQ20100 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PLS-QXHNQ25100 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PLS-QXHNQ28100 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PLS-QXHNQ2560 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PLS-QXHNQ2860 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PLS-QXHNQ2850 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PLS-QXHNQ3360 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PLS-QXHNQ4060 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PLS-QXHNQ4050 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PLS-QXHNQ5435 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PLS-QXHNQ6860 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PLS-QXHNQ68120 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PLS-QXHNQ8060 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PLS-QXHNQ12060 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PLS-QXHNQ13550 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
标签:High Frequency Industrial Piezoceramic Ultrasonic Transducer, Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
