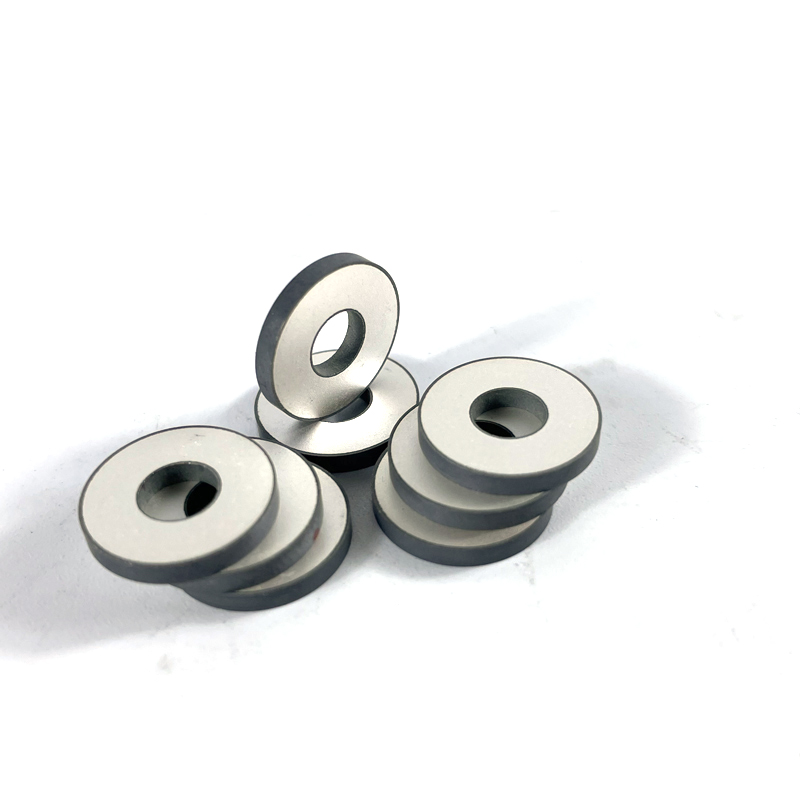

70*30*10mm Pzt8 Ring Piezoceramic Cylinder Piezoelectric Ceramic Ring Elements
Piezoelectric ceramic vibrating plate is a device that utilizes the piezoelectric effect of piezoelectric ceramic materials to generate vibration. Its structure typically consists of piezoelectric ceramic materials, electrodes, and a base, with the piezoelectric ceramic material being the core component. When a voltage is applied on both sides of a piezoelectric ceramic material, due to the piezoelectric effect, there will be slight deformation inside the material, resulting in vibration. This vibration can be transmitted to other components through a base connected to piezoelectric ceramic materials, thereby achieving specific functions.
Piezoelectric ceramic vibration plates have a wide range of applications in various fields. For example, in audio devices, it can act as part of a speaker or microphone, converting electrical signals into sound signals or extracting electrical signals from sound signals. In the medical field, piezoelectric ceramic vibration plates can be used for ultrasound diagnosis and treatment, transmitting energy to the human body through high-frequency vibration, thereby achieving non-invasive and painless treatment and diagnosis. In addition, piezoelectric ceramic vibration plates also play an important role in fields such as sensors, precision instruments, and electronic equipment.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
70*30*10mm Pzt8 Ring Piezoceramic Cylinder Piezoelectric Ceramic Ring Elements
