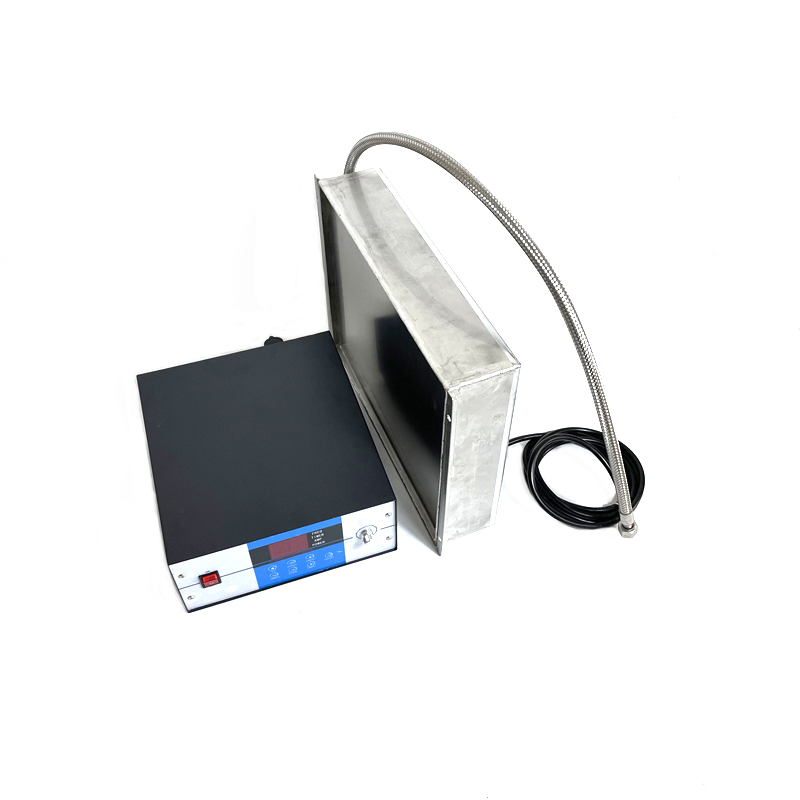

68KHZ 600W High Frequency Submersible Ultrasonic Cleaner Machine And Generator Control Box

68KHZ 600W High Frequency Submersible Ultrasonic Cleaner Machine And Generator Control Box

The high-frequency ultrasonic vibration plate vibration box device consists of two parts: the vibration plate and the ultrasonic generator. When the standard model of ultrasonic cleaning machine is not suitable for a specific working environment, in addition to customizing special specifications, an input type vibration plate device can also be used. In existing equipment, if a regular cleaning tank already exists, a vibration plate device can be added and converted into an ultrasonic cleaning machine; The ultrasonic vibrating plate is used to bond the ultrasonic transducer to the closed stainless steel 316 material box or titanium material box, connect it with the split type ultrasonic generator through the lead out wire, and can be conveniently put into the cleaning solution. It is usually used in large electroplating production lines and various non-standard equipment, and is used for oil removal, dust removal, wax removal and cleaning before surface treatment of the workpiece, so as to facilitate maintenance and replacement. It can be made into bottom vibrating type Side mounted, top mounted, etc; The configuration is flexible, and the ultrasonic power is designed based on the actual size of the tank.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
