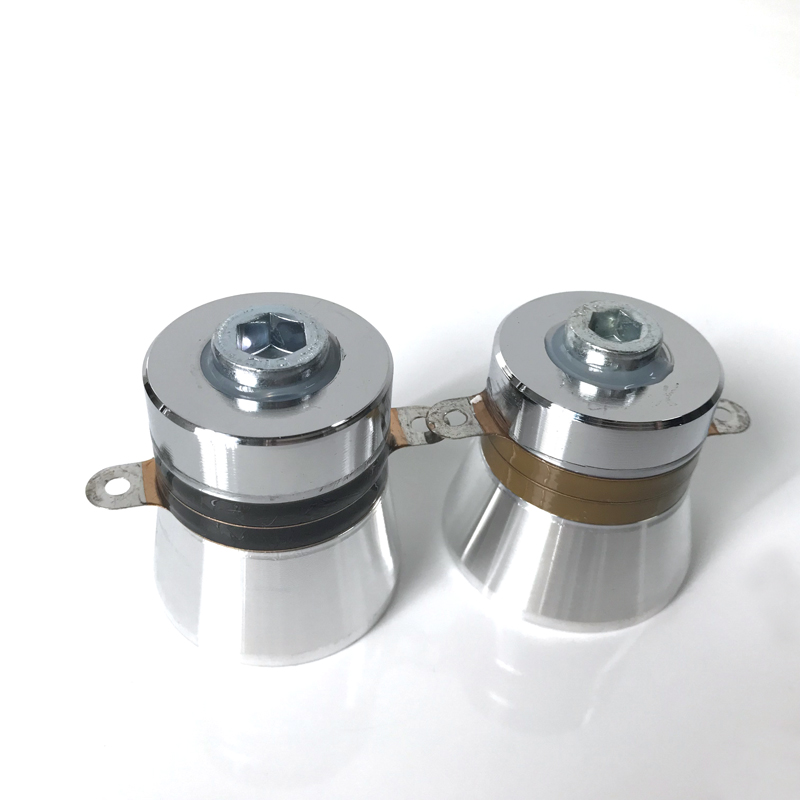

60W pzt4 Piezoelectric Ultrasonic Transducer Ultrasound 40khz Cleaning Transducer For Ultrasonic Cleaning Machine

60W pzt4 Piezoelectric Ultrasonic Transducer Ultrasound 40khz Cleaning Transducer For Ultrasonic Cleaning Machine

Ultrasonic vibrator and ultrasonic head are limited liability companies specializing in the production and processing of ultrasonic generators, transducers, ultrasonic vibrating screen generators, ultrasonic transducers, vibrators, ultrasonic edge pressing machines, ultrasonic embossing machines, ultrasonic vibration plates, high-frequency generators, ultrasonic electronic components, and other products. The company mainly focuses on ultrasonic power supplies (generators), supporting a large number of ultrasonic manufacturers with strong technical strength, The machine has stable quality and low prices, quickly entering the market and becoming a leader in the industry.

Classification of ultrasonic transducers:

A. Classification of piezoelectric chips: P4 series with black chips and P8 series with yellow chips;

B. Frequency classification: low-frequency series (17-23KHz), intermediate frequency series (25-28KHz), intermediate high frequency series (33-60KHz), and high-frequency series (68-200KHz);

C. Power classification: 50W series (including 60W), 100W series (including 80W) and other unconventional powers;

D. Shape classification: straight cylindrical and trumpet shaped;

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
PU-UT-20100 PZT-8	94	900	20	10-20	5200	100
PU-UT-25100 PZT-4	77	710	25	10-20	6600	100
PU-UT-28120 PZT-4	66	720	28	10-20	7800	120
PU-UT-28100 PZT-8	66	625	28	10-20	5200	100
PU-UT-28100 PZT-4	66	624	28	10-20	6600	100
PU-UT-30100 PZT-8	61	555	30	10-20	5200	100
PU-UT-2560 PZT-4	77	530	25	10-20	5400	60
PU-UT-2860 PZT-8	68	470	28	10-20	3800	60
PU-UT-2850 PZT-4	82	425	28	10-20	4100	50
PU-UT-3360 PZT-8	58	420	33	10-20	3800	60
PU-UT-4060 PZT-8	55	300	40	10-20	3800	60
PU-UT-4060 PZT-4	56	310	40	10-20	5400	60
PU-UT-4050 PZT-4	54	260	40	10-20	4100	50
PU-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
PU-UT-5435 PZT-4	36	135	54	10-20	3200	35
PU-UT-6860 PZT-8	80	460	68	10-20	3800	60
PU-UT-68120 PZT-4	67	588	68	10-20	7800	120
PU-UT-8060 PZT-4	60	325	80	10-20	5400	60
PU-UT-12060 PZT-4	56	260	120	10-20	5400	60
PU-UT-13550 PZT-4	54	215	135	10-20	4200	50
