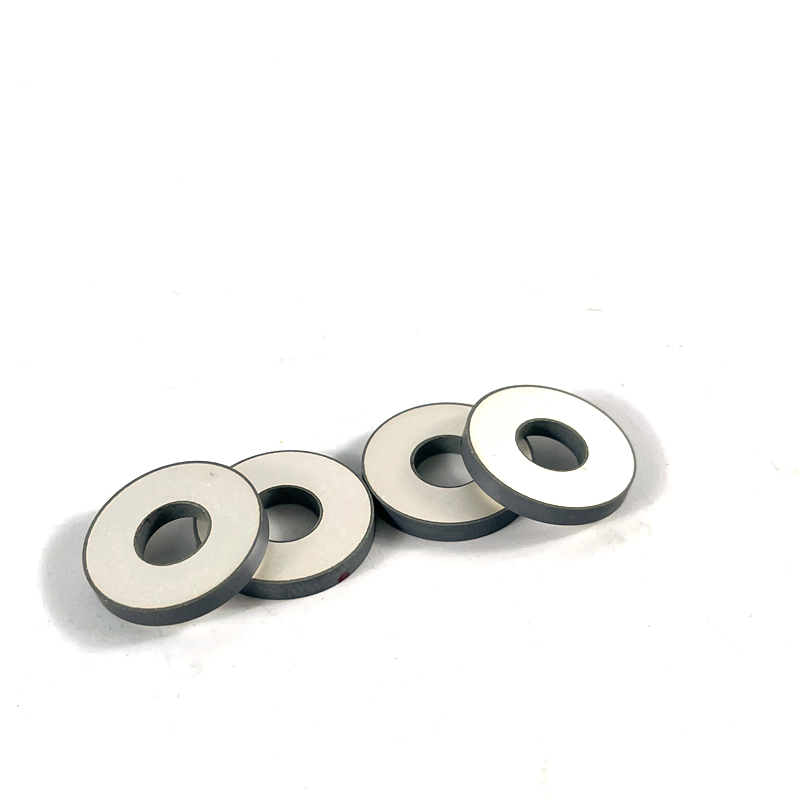

50x17x6.5mm Piezoceramic Rings Piezoelectric Elements PZT82 Material For Ultrasonic Welding Transducer
In addition to its applications in specific fields, circular piezoelectric ceramic sheets also have broad application prospects in other fields. For example, in smart wearable devices, circular piezoelectric ceramic sheets can be used to collect small vibrations from the human body and provide power to the device; In…
In addition to its applications in specific fields, circular piezoelectric ceramic sheets also have broad application prospects in other fields. For example, in smart wearable devices, circular piezoelectric ceramic sheets can be used to collect small vibrations from the human body and provide power to the device; In smart homes, circular piezoelectric ceramic sheets can be used to collect vibration energy from the environment and provide power to home devices; In the field of transportation, circular piezoelectric ceramic sheets can be used to collect the vibration energy of vehicles and provide power for on-board equipment.
Circular piezoelectric ceramic sheets, as an important electronic component, have broad application prospects in many fields. With the continuous development of technology, it is believed that circular piezoelectric ceramic sheets will be applied in more fields, bringing more convenience and benefits to people’s lives and work. At the same time, we also look forward to more researchers and enterprises investing in the research and application of circular piezoelectric ceramic sheets, promoting the development and progress of this field.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
