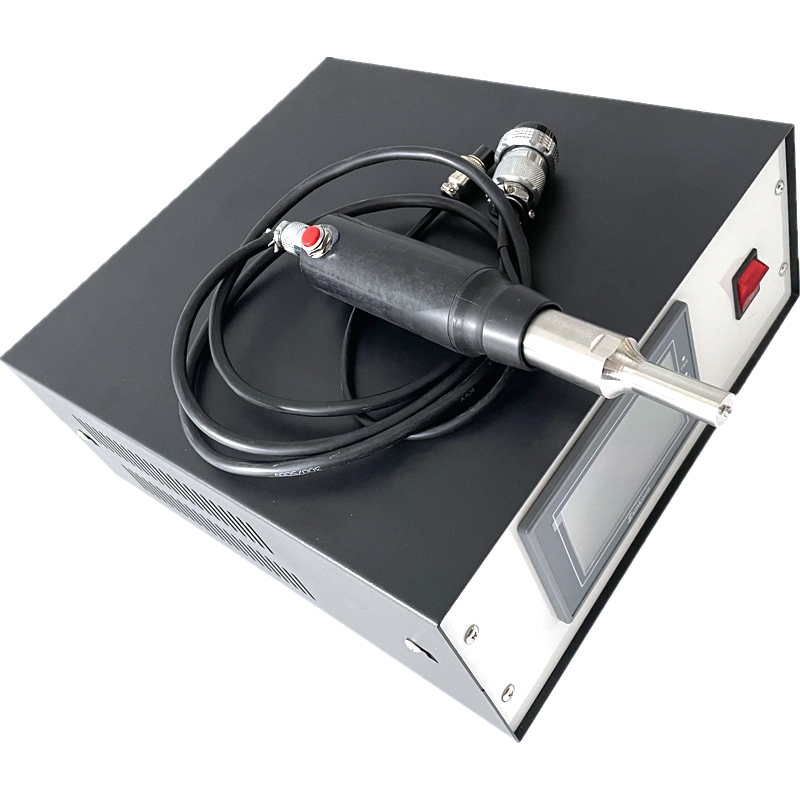

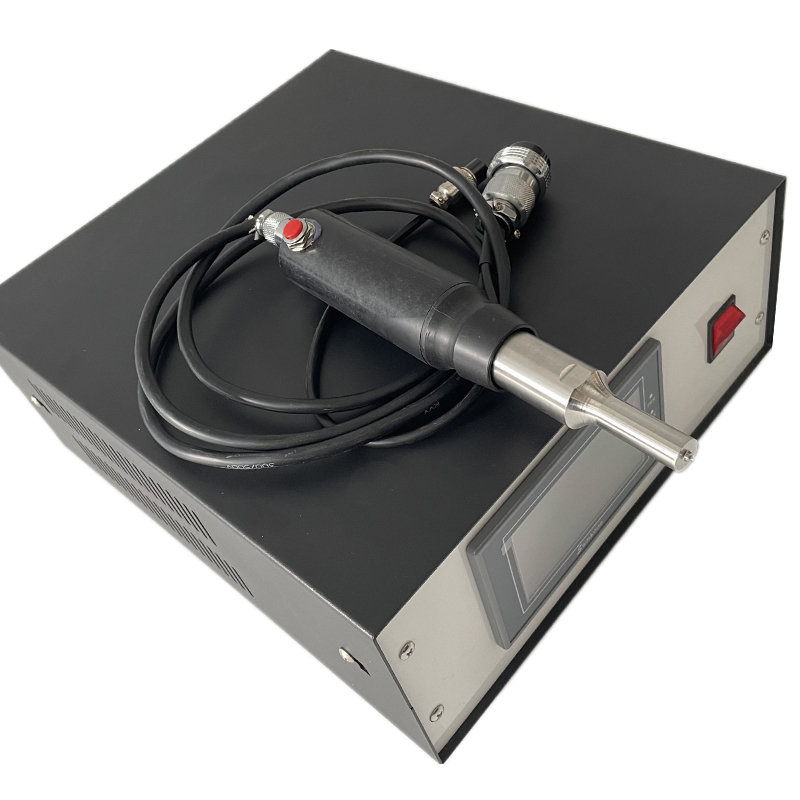

500W 35KHZ Single Head Earloop Ultrasonic Spot Welding Machine And Power Generator
ultrasonic spot welding machine can be used for butt welding of thermoplastics, and can also be used to replace welding head according to customer needs. It can be used for riveting, spot welding, embedding, cutting and other processing processes. Compared with other traditional processes (such as adhesive bonding, e…
500W 35KHZ Single Head Earloop Ultrasonic Spot Welding Machine And Power Generator
ultrasonic spot welding machine can be used for butt welding of thermoplastics, and can also be used to replace welding head according to customer needs. It can be used for riveting, spot welding, embedding, cutting and other processing processes. Compared with other traditional processes (such as adhesive bonding, electric ironing or screw fastening), it has significant advantages such as high production efficiency, good welding quality, environmental protection and energy saving. The ultrasonic spot welding machine adopts imported piezoelectric ceramics to vibrate crystal, with high efficiency and long service life; The original vertical normal temperature circulating self cooling ultrasonic generator has the lowest failure rate in the industry; The aluminum alloy casting integral frame ensures the rigidity of the machine body; Gear rack lifting mechanism, easy to operate and accurate positioning; Both automatic and manual operation modes are available for convenient debugging; Cabinet type worktable designed according to ergonomics principle is optional; With automatic counter and foot switch interface reserved. The ultrasonic spot welding machine is mainly used for positioning and bearing of workpieces. The metal tooling or resin casting tooling that is molded, engraved and polished has the function of protecting the workpiece surface from scratches. In addition, the tooling can be made into an automatic tooling and linked with the welding machine to improve the operation mode or improve the production efficiency. Ultrasonic spot welding machine can also be used for welding, riveting, spot welding of thermoplastic products, as well as inlaying and blank pressing processes between metal parts and plastic parts. Ceramic eliminates the backward process of pasting with chemical organic melting agent, and has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, solid welding, convenient operation, etc. The product adopts advanced circuit, program control, pneumatic transmission, automatic over-current protection, and safe operation protection circuit. The circuit adopts a circuit board plug-in structure, which is convenient for maintenance and replacement. A new 15KHz ultrasonic plastic welding machine with electronic delay welding device is also designed. It has unique advantages for welding soft PE and PP materials, and plastic weldments with super large diameter and super long length, which can meet the needs of various products, It can contribute to the improvement of production efficiency and product grade for all users.
Type | power (W) | Frequency | Welding time | Contains |
PU-HH300W | 300W | 20khz,28khz,30khz,35khz,40khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH500W | 500W | 20khz,28khz,30khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH900W | 900W | 20khz,28khz,30khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH1000W | 1000W | 20khz,28khz | 0.1-3sec | generator , transducer ,horn,head |
PU-HH1200W | 1200W | 20khz,28khz | 0.1-3sec | generator , transducer ,horn,head |
500W 35KHZ Single Head Earloop Ultrasonic Spot Welding Machine And Power Generator
标签:ultrasonic spot welding machine, Ultrasonic Spot Welding Machine And Power Generator
