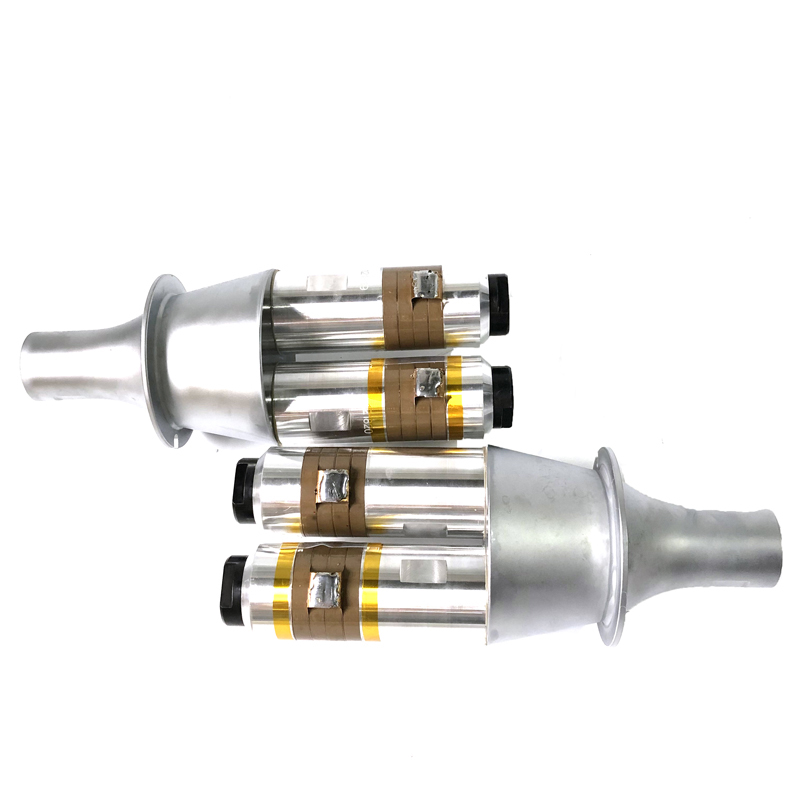

4200W 15kHz High Power Plastic Ultrasonic Welding Transducer With Booster For ABS PVC Plastic Welding Machine
The vibrator of industrial ultrasonic welding transducer is the ultrasonic vibration generated by the transducer, which generates high-frequency friction heating on the contact gap surface of the welded object under pressure, so as to achieve the purpose of thermal fusion welding. The ultrasonic welding transducer is…
The vibrator of industrial ultrasonic welding transducer is the ultrasonic vibration generated by the transducer, which generates high-frequency friction heating on the contact gap surface of the welded object under pressure, so as to achieve the purpose of thermal fusion welding. The ultrasonic welding transducer is a high-power transducer working in gaps or pulses, and its power is generally calculated by the instantaneous peak power.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
