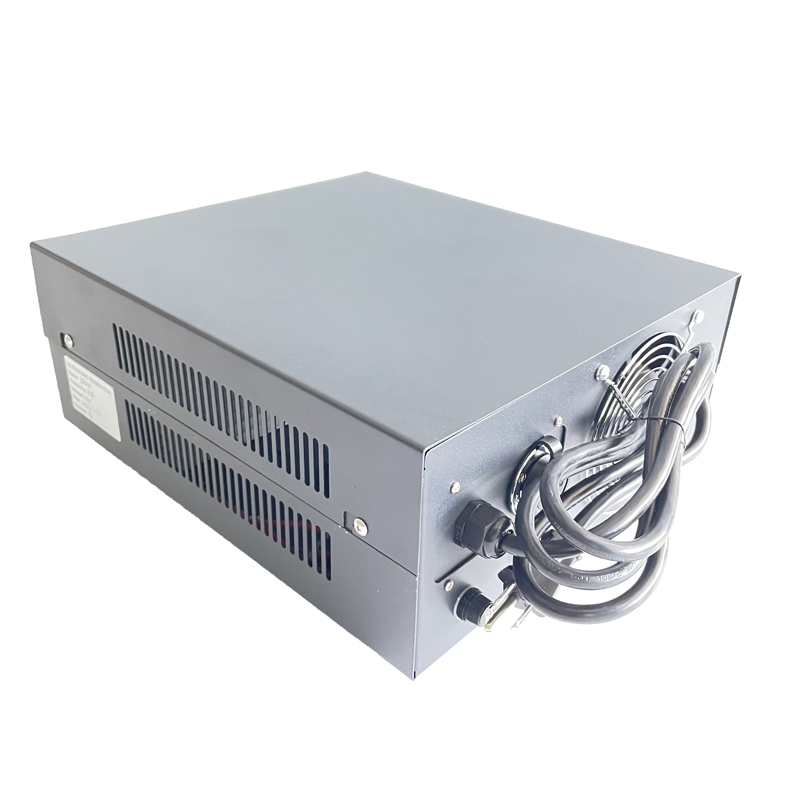

3000W 40KHZ High Power Ultrasonic Wave Generator For Cleaning Tank
The professional production of anti-corrosion Ultrasonic Generator is the generator power supply for ultrasonic cleaner factory, electroplating equipment factory, dishwasher factory and vibrating screen factory, and the characteristics of the whole machine Frequency sweeping function: the advanced frequency sweepi…
3000W 40KHZ High Power Ultrasonic Wave Generator For Cleaning Tank
The professional production of anti-corrosion Ultrasonic Generator is the generator power supply for ultrasonic cleaner factory, electroplating equipment factory, dishwasher factory and vibrating screen factory, and the characteristics of the whole machine
- Frequency sweeping function: the advanced frequency sweeping circuit in the international market can effectively protect the shock plate;
- The power output components IGBT are all imported devices, which have the advantages of small size, large power, fast response, etc;
- Power tube: imported 90A/1200V tubes from Toshiba, Japan are used to eliminate the possibility of tube burning;
- The unique sealing anti-corrosion technology ensures the long-term stable and reliable operation of the internal circuit board;
- The output power of the separately excited control circuit can reach more than 97%, which greatly improves the ultrasonic cavitation density;
- The output current is a sine wave, which can prolong the service life of the Ultrasonic Transducer and generator;
- Wide range matching frequency: 20KHZ-42KHZ adjustable, applicable to various transducers (factory setting);
- Constant output design, small output current ripple, more stable output, and protect the piezo transducer from damage;
- Output over-current and short-circuit protection can protect the generator power tube.
Type | Power(W) | Frequency (KHz) | Siz |
PU-DGN300 | 300W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN600 | 600W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN900 | 900W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1000 | 1000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1200 | 1200W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1500 | 1500W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN1800 | 1800W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN2000 | 2000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN2400 | 2400W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
PU-DGN3000 | 3000W | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 300x360x150 |
3000W 40KHZ High Power Ultrasonic Wave Generator For Cleaning Tank
标签:High Power Ultrasonic Generator, piezo transducer, Ultrasonic Power Generator, Ultrasonic Transducer, Ultrasonic Wave Generator
