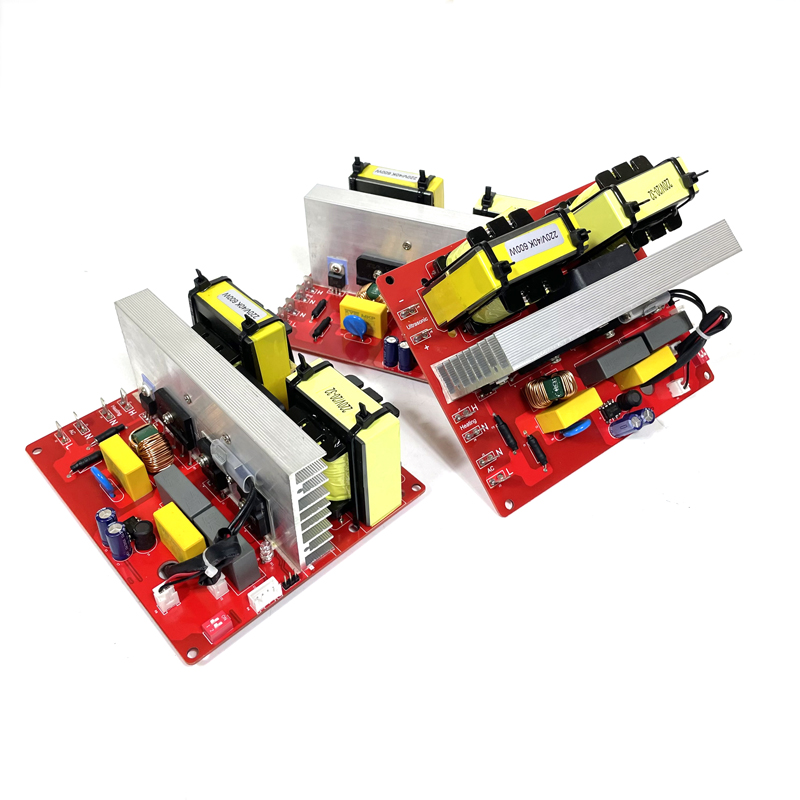

28KHZ-40KHZ High Power Digital Ultrasonic Generator Circuit PCB For Industrial Ultrasonic Cleaner

28KHZ-40KHZ High Power Digital Ultrasonic Generator Circuit PCB For Industrial Ultrasonic Cleaner

The 200W 28KHZ/40KHZ ultrasonic circuit board draws on the ultrasonic power supply technology of Germany and Japan, adopts advanced frequency tracking technology and independent excitation current in China, ensuring the strength and uniformity of ultrasonic cleaning, good cleaning effect, and fast cleaning speed. The 200W 28KHZ/40KHZ ultrasonic circuit board has a faster frequency tracking speed compared to the old frequency scanning technology, and is not affected by the number of water tanks and transducers.

The 200W 28KHZ/40KHZ ultrasonic circuit board can determine the central resonant frequency of the ultrasonic cleaning transducer, thereby determining the driving frequency that drives the operation of the ultrasonic cleaning transducer, and thereby improving the energy conversion efficiency of the ultrasonic cleaning transducer. The power output components IGBT are all imported devices, which have the advantages of small size, high power, and fast response;

The 200W 28KHZ/40KHZ ultrasonic circuit board generator is easy to operate, can work when turned on, and can achieve frequency and current regulation. The frequency can be adjusted from 20khz to 40khz, and the power can be 200W-600W. It has the function of stepless power adjustment, and the output power can achieve 100% continuous adjustment to meet the requirements of various cleaning objects. It can also set time and timing for safe operation.

Type	Power（W）	Frequency (KHz)
PU-PCB200W	200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz,165khz,200khz
PU-PCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz
PU-PCB400W	400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-PCB500W	500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
PU-PCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
