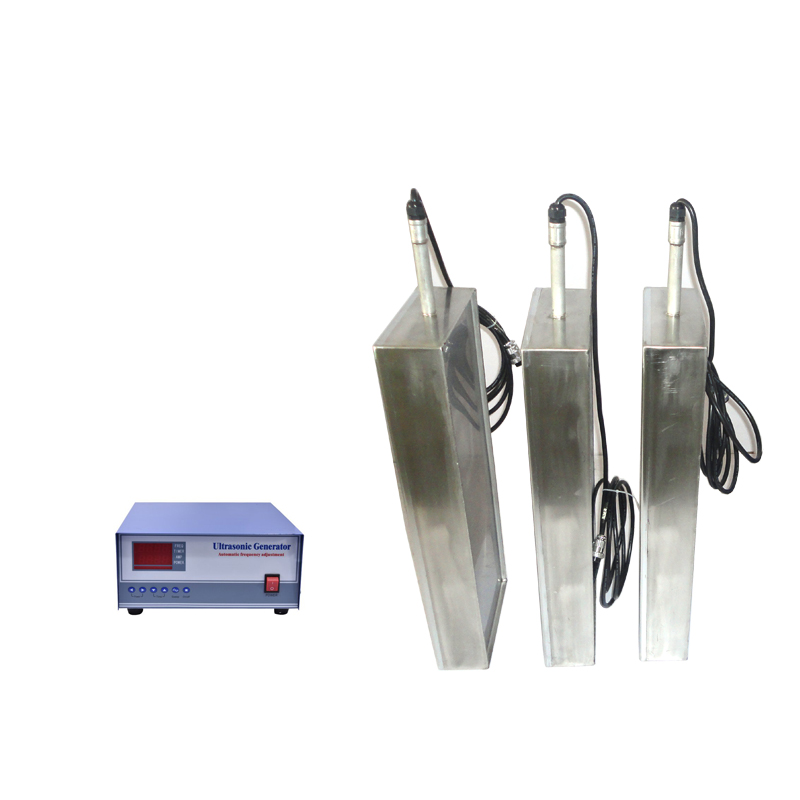

28kHz 40kHz 2500W Underwater Ultrasonic Cleaner Board Plate Box Tank Bath Customized Waterproof
1、 Ultrasonic vibration plate function: Acceleration: The acceleration caused by liquid particles. For the Ultrasonic cleaning with high frequency, cavitation is very insignificant. At this time, the cleaning mainly depends on the liquid particles to accelerate the impact of particles under the action of ul…
28kHz 40kHz 2500W Underwater Ultrasonic Cleaner Board Plate Box Tank Bath Customized Waterproof
1、 Ultrasonic vibration plate function:
- Acceleration: The acceleration caused by liquid particles. For the Ultrasonic cleaning with high frequency, cavitation is very insignificant. At this time, the cleaning mainly depends on the liquid particles to accelerate the impact of particles under the action of ultrasonic waves to clean the dirt ultra precisely.
- Cavitation: Cavitation refers to the high-frequency conversion of ultrasonic waves into a liquid through the interaction of compression force and pressure reduction at least 20000 times per second. When the pressure decreases, vacuum nucleation occurs in the liquid. When compression force is applied, the vacuum core bubble is crushed by pressure, generating a strong impact force, which peels off the dirt on the surface of the object to be cleaned, thus achieving the goal of precise cleaning.
- Direct inflow: The phenomenon of ultrasonic waves flowing in a liquid along the direction of sound propagation is called direct inflow. When the sound wave intensity is 0.5W/cm2, direct flow is visible to the naked eye, generating a flow perpendicular to the vibration surface, with a flow rate of about 10 cm/s. Through this direct flow, the micro oil dirt on the surface of the object to be cleaned is stirred, and the cleaning solution on the dirt surface also generates convection. Mixing the dissolved solution of dirt with a new solution accelerates the dissolution rate and plays a significant role in the transportation of dirt.
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
PU-UITP300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
PU-UITP600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
PU-UITP1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
PU-UITP1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
PU-UITP1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
PU-UITP1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
PU-UITP2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
PU-UITP2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
PU-UITP3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
PU-UITP5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
28kHz 40kHz 2500W Underwater Ultrasonic Cleaner Board Plate Box Tank Bath Customized Waterproof
标签:Ultrasonic Cleaner Board Plate Box Tank Bath Customized Waterproof, Underwater Ultrasonic Cleaner Board Plate
