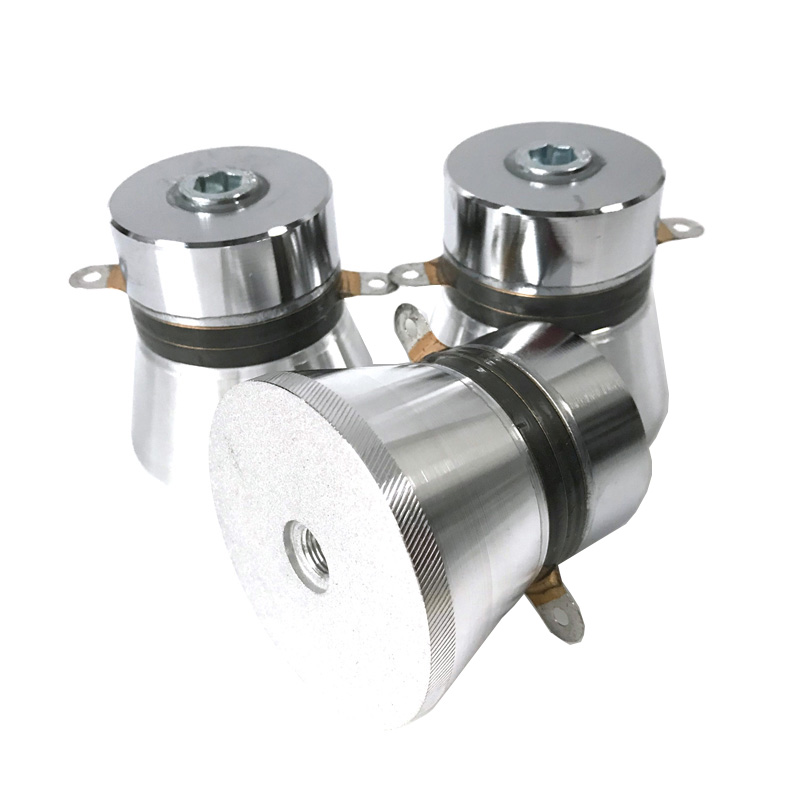

28khz 100W Oscillator Ultrasound Immersion Sensor Ultrasonic Cleaning Transducer For Ultrasonic Cleaner
Comparison of different chip transducers: 1) The absolute change in capacitance of the transducer assembled with yellow chips is low, and the strong field loss is small. Therefore, compared to the same drive circuit, it has low heat generation and good thermal stability. Water splashes are characterized by stable …
Comparison of different chip transducers:
1) The absolute change in capacitance of the transducer assembled with yellow chips is low, and the strong field loss is small. Therefore, compared to the same drive circuit, it has low heat generation and good thermal stability. Water splashes are characterized by stable changes in cleaning load, high impact, and belong to the moderate to moderate type.
2) The transducer of the black chip has high Electromechanical coupling coefficient and high Curie temperature, so the electroacoustic conversion efficiency is high. And it has higher stability and temperature resistance than other products using the general P4 series. Water splashes are characterized by high water column and rich hand feel of bubbles, but high sensitivity to changes in cleaning load.
3) Usage (recommended): High frequency (such as 40K or above) or low-power transducers (below 60W) are assembled using black chips
The transducer is assembled with yellow chips for low-frequency or high-power transducers.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PU-UT-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PU-UT-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PU-UT-28120 PZT-4 | 66 | 720 | 28 | 10-20 | 7800 | 120 |
PU-UT-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
PU-UT-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PU-UT-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
PU-UT-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PU-UT-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PU-UT-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PU-UT-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PU-UT-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
PU-UT-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PU-UT-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PU-UT-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PU-UT-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PU-UT-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PU-UT-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PU-UT-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
标签:Ultrasonic Cleaning Transducer For Ultrasonic Cleaner, Ultrasonic Transducer, Ultrasound Immersion Sensor Ultrasonic Cleaning Transducer
