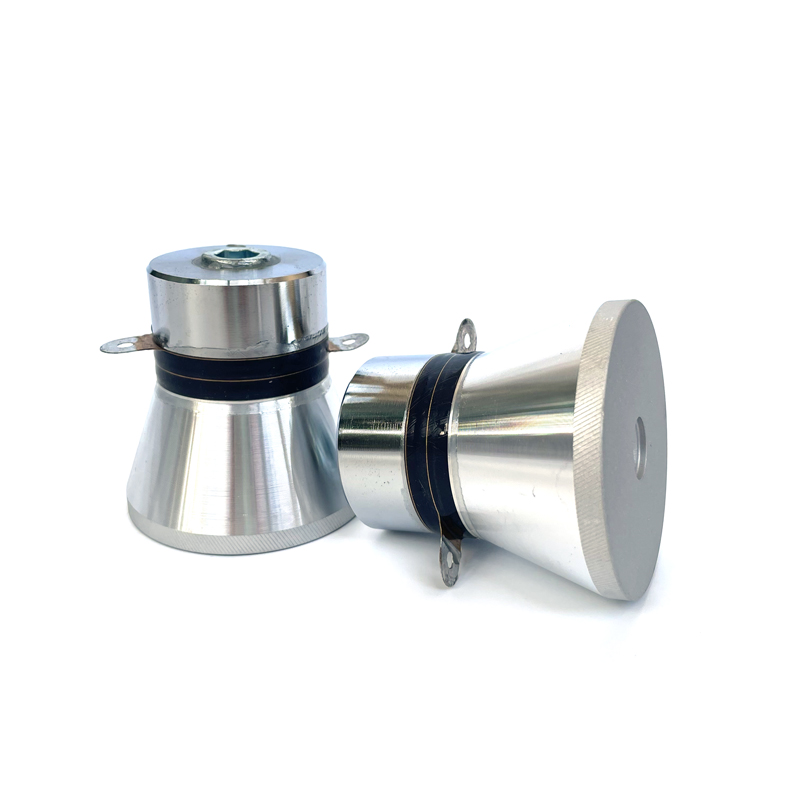

25KHz 100W Ultrasound Cleaning Transducer Piezo Electric Sensor Ultrasonic Piezoelectric Ceramic Transducers
Explanation of using different piezoelectric materials for transducers: The black chip is the P4 series, which is a medium power emitting material with dual characteristics of transmission and reception, With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultra…
Explanation of using different piezoelectric materials for transducers:
The black chip is the P4 series, which is a medium power emitting material with dual characteristics of transmission and reception,
With low dielectric loss and high mechanical quality factor, it is mainly used in ultrasonic cleaning, ultrasonic atomization, etc
The yellow chip is P8 series, and this kind of piezoelectric material belongs to high-power emission material, which is characterized by high mechanical quality factor,
Good stability, very low dielectric loss, especially suitable for making high-power ultrasonic transducers for emission. Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning, and other aspects
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PU-UT-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PU-UT-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PU-UT-28120 PZT-4 | 66 | 720 | 28 | 10-20 | 7800 | 120 |
PU-UT-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
PU-UT-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PU-UT-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
PU-UT-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PU-UT-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PU-UT-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PU-UT-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PU-UT-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
PU-UT-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PU-UT-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PU-UT-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PU-UT-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PU-UT-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PU-UT-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PU-UT-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
