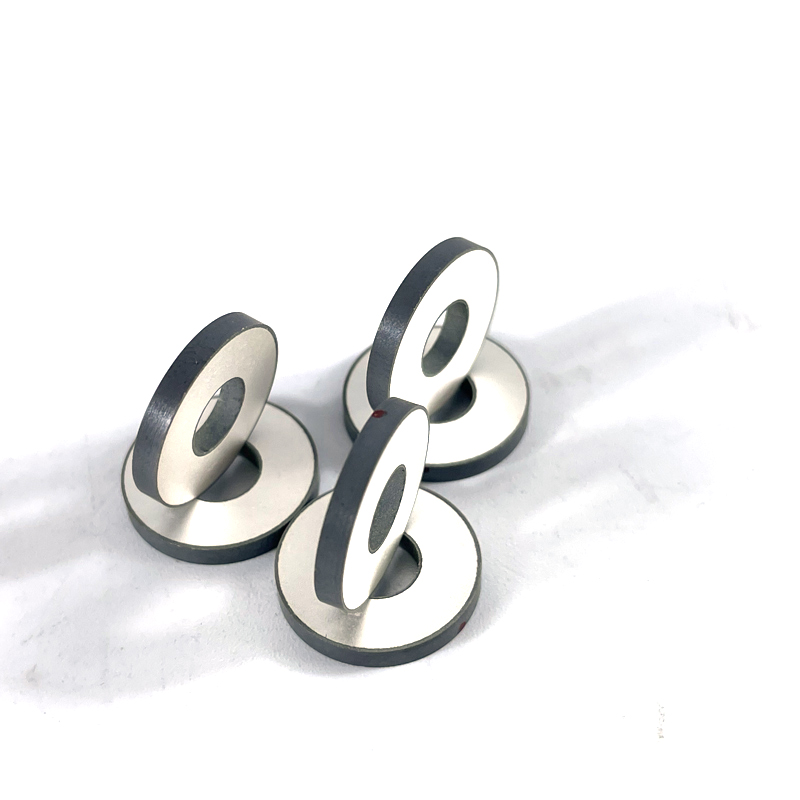

25*10*4mm PZT-8 Piezoelectric Ceramic Ring For 28khz/40khz 100W Ultrasonic Welder Converters Transducer
By utilizing the characteristics of piezoelectric ceramic sheets to convert external forces into electrical energy, piezoelectric igniters and mobile X-ray power supplies can be manufactured. Replacing ordinary flint with two piezoelectric ceramic columns with a diameter of 3mm and a height of 5mm can create a gas el…
By utilizing the characteristics of piezoelectric ceramic sheets to convert external forces into electrical energy, piezoelectric igniters and mobile X-ray power supplies can be manufactured. Replacing ordinary flint with two piezoelectric ceramic columns with a diameter of 3mm and a height of 5mm can create a gas electronic lighter that can ignite tens of thousands of times continuously. The use of piezoelectric ceramic sheets to convert electrical energy into ultrasonic vibration can be used to explore the position and shape of underwater fish, perform non-destructive testing, ultrasonic cleaning, and ultrasonic medical treatment on metals, and produce various ultrasonic cutting tools, welding devices, and soldering irons for processing plastics and even metals.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
标签:25*10*4mm PZT-8 Piezoelectric Ceramic Ring, Piezoelectric Ceramic Ring For 28khz/40khz 100W Ultrasonic Welder Converters Transducer
