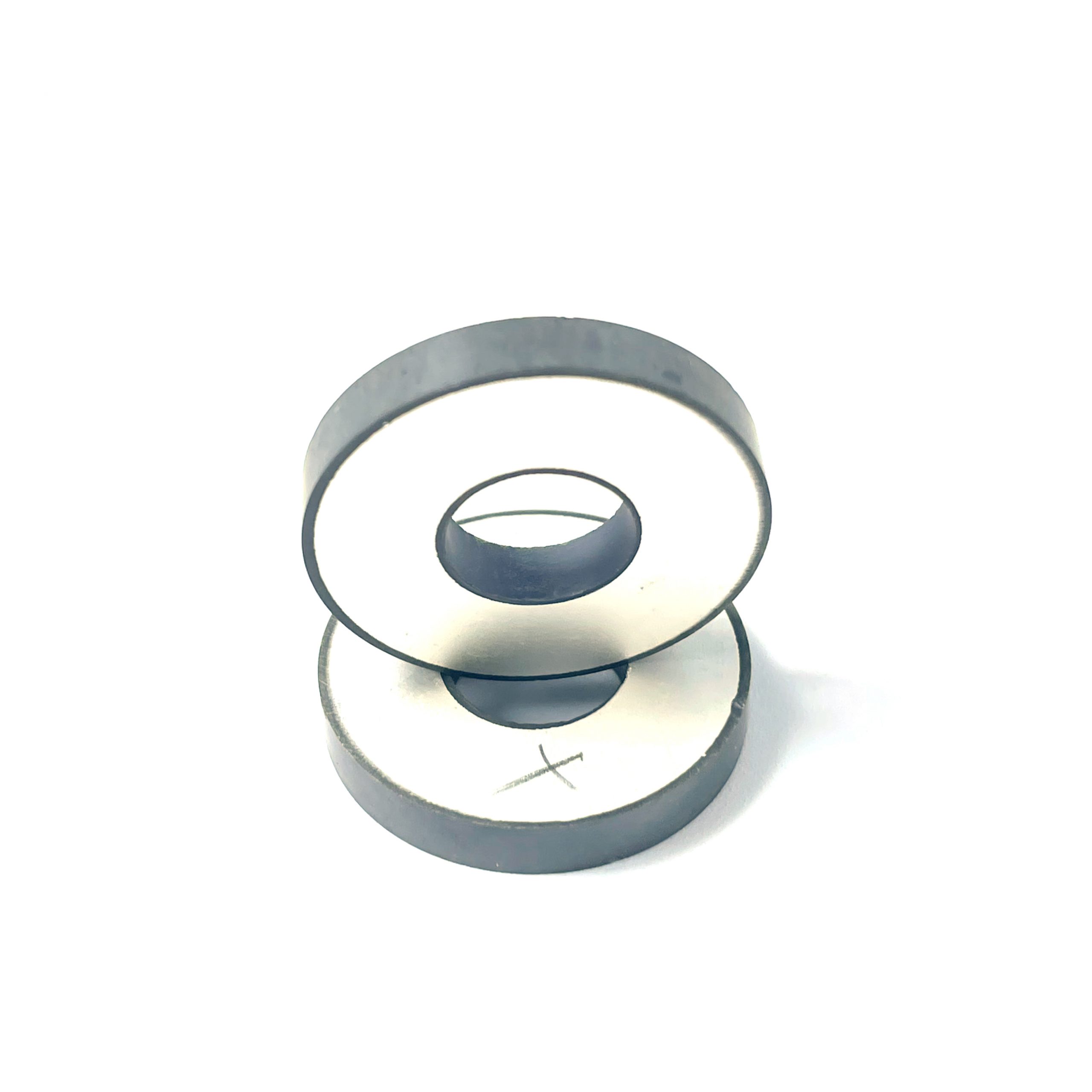

24*7*3mm Ultrasonic Piezo Element Ultrasound Ceramic Piezoelectric Ceramic Ultrasonic Transducer Piezoelectric Ring Ceramic
The preparation process of circular piezoelectric ceramics is extremely precise, requiring multiple processes and high-temperature sintering to form a circular shape with stable piezoelectric performance. This ceramic material can generate charges when subjected to external forces, achieving the conversion of mechani…
The preparation process of circular piezoelectric ceramics is extremely precise, requiring multiple processes and high-temperature sintering to form a circular shape with stable piezoelectric performance. This ceramic material can generate charges when subjected to external forces, achieving the conversion of mechanical and electrical energy. This characteristic makes circular piezoelectric ceramics have broad application prospects in fields such as measurement, control, and signal processing.
In the field of sensors, circular piezoelectric ceramics are widely used for measuring physical quantities such as pressure, acceleration, and vibration due to their high sensitivity and stability. By accurately measuring these physical quantities, circular piezoelectric ceramics provide important data support for industrial automation, medical equipment, and aerospace fields.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
标签:Ultrasonic Transducer Piezoelectric Ring Ceramic, Ultrasound Ceramic Piezoelectric Ceramic
