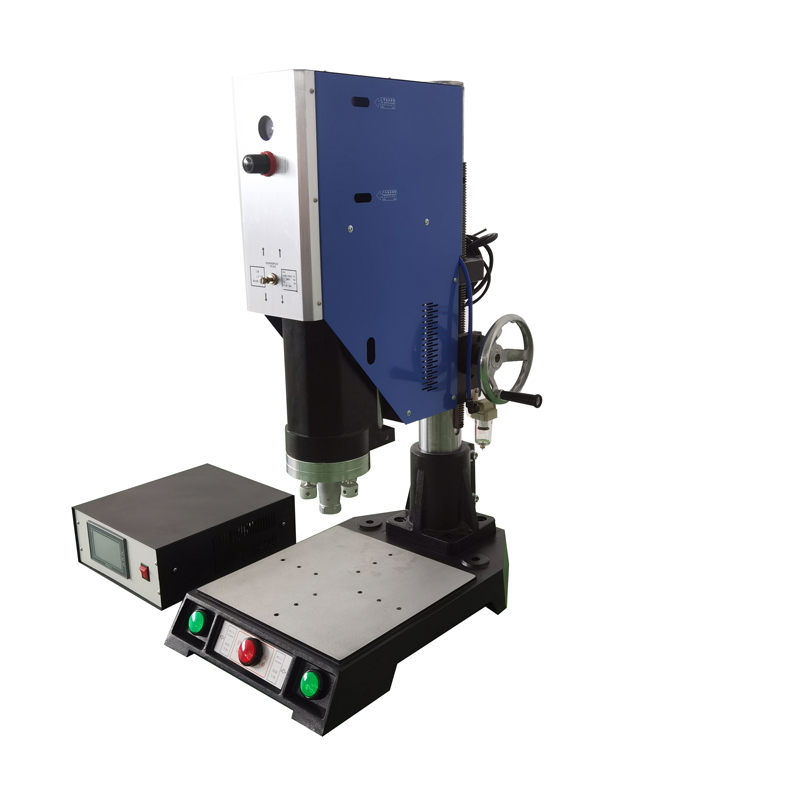

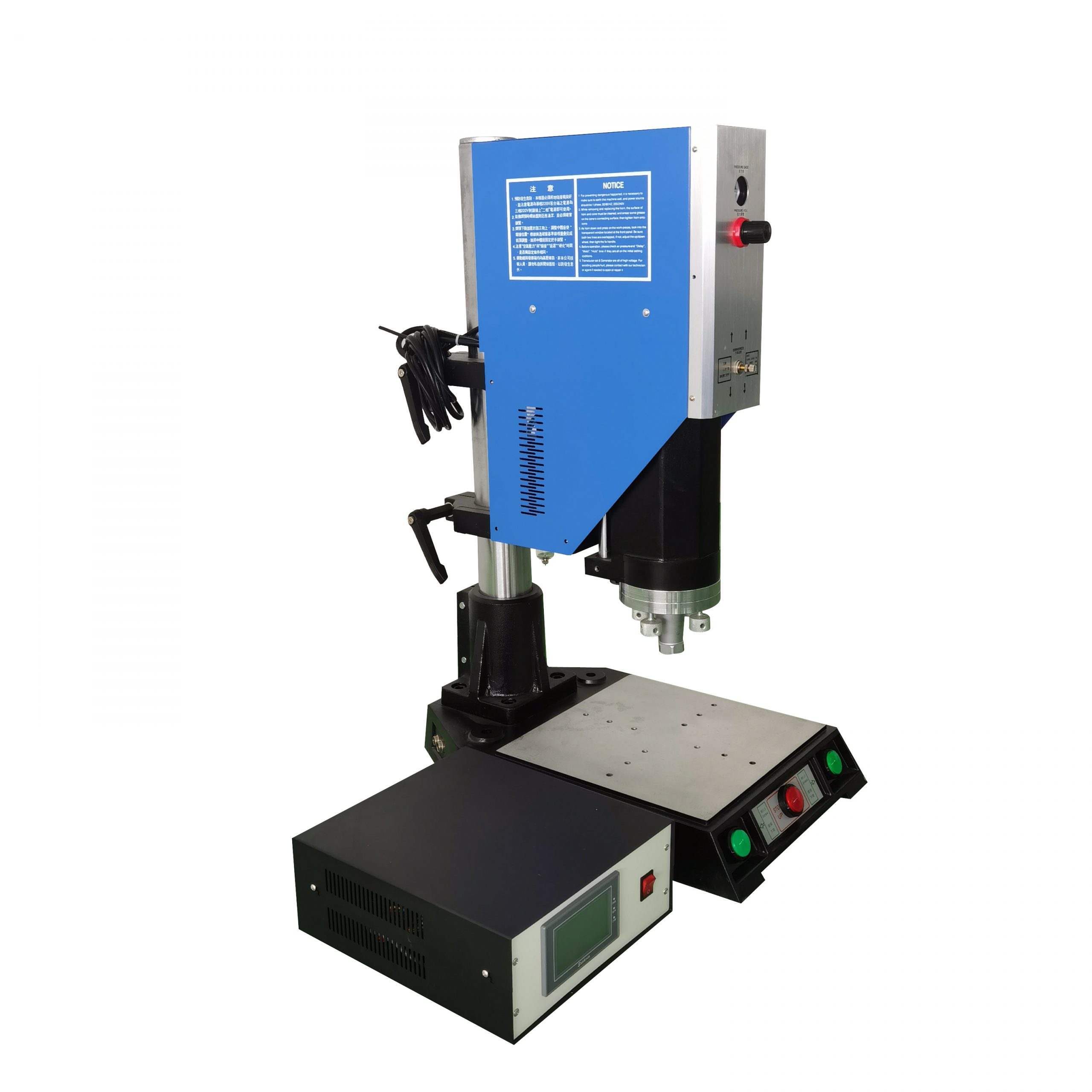

20KHz Ultrasonic Plastic Welding Machine For Automotive Seat Keyboard Plate And Sound Generator
Product performance of ultrasonic welding machine
- Precision resistance is used to control the welding depth to make the precision of finished products reach ± 0.01mm.
- Amplitude can be set at 50% – 100% output according to welding requirements.
- The machine is specially equipped with the SHAKE function to prevent the workpiece from sticking to the welding head after welding. The function is to set the switch as required
- It has a resonance system and a vibrator with an electromechanical conversion efficiency of more than 95%. It is equipped with a unique hard node titanium alloy expansion cone to provide the most stable and high-precision welding quality reproducibility.
- The super strengthened round machine column can withstand 280Kg-m torque and more than 3t bending stress, so that the machine can achieve 100% of the required quality during welding.
Type | Power(W) | Frequency (KHz) |
PU-UWM600W | 600W | 15KHZ/20KHZ/28KHZ/40KHZ |
PU-UWM900W | 900W | 15KHZ/20KHZ/28KHZ/40KHZ |
PU-UWM1000W | 1000W | 15KHZ/20KHZ/28KHZ/30KHZ |
PU-UWM1500W | 1500W | 15KHZ/20KHZ |
PU-UWM1800W | 1800W | 15KHZ/20KHZ |
PU-UWM2000W | 2000W | 15KHZ/20KHZ |
PU-UWM2600W | 2600W | 15KHZ |
PU-UWM3200W | 3200W | 15KHZ |
PU-UWM4200W | 4200W | 15KHZ |
20KHz Ultrasonic Plastic Welding Machine For Automotive Seat Keyboard Plate And Sound Generator
标签:Ultrasonic Generator, ultrasonic plastic welding machine, ultrasonic welding machine
