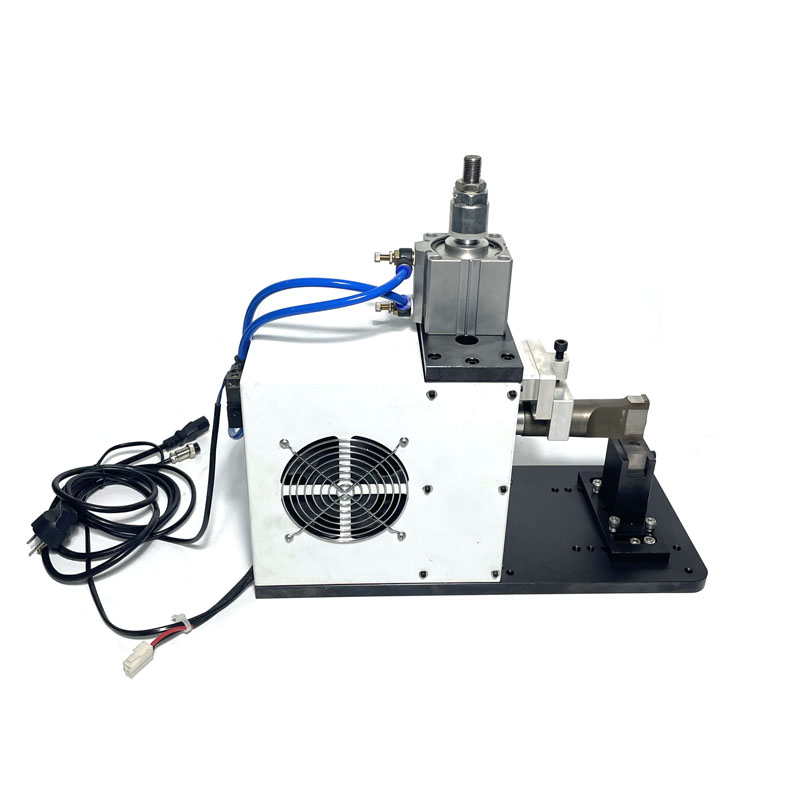

20khz Ultrasonic Metal Battery Spot Welder Machine For Pouch Cell And Supercapacitor
Ultrasonic metal spot welding machine uses the principle of high-frequency ultrasonic vibration friction to convert the energy of ultrasonic vibration into frictional energy and transfer it to the metal surface to be welded. Spot welding is the process of welding individual points on the contact surface of the welded part at the joint, and applying pressure to them while generating heat through friction, fully activating the metal structural molecules and forming fusion between molecular layers, Quickly heat the metal in the hottest area of the center to a highly plastic or molten state, forming a lens shaped liquid melt pool. Continue to maintain pressure, disconnect the current, and after the metal cools, a solder joint is formed.
Characteristics of spot welding equipment
- Adopting a brand new overall design, with small size, light weight, and beautiful appearance;
- Easy to operate, no need to add auxiliary materials, fast welding speed, high energy efficiency;
- Independent intellectual property rights welding head, comparable to world famous brands, reducing usage costs;
- Easy to operate, built-in electronic protection circuit, safe to use;
- Used for similar welding of metals, capable of single or multi-point welding of non-ferrous metals.
Type | Power(W) | Frequency (KHz) |
PU-MSW2000W | 2000W | 20KHZ |
PU-MSW2600W | 2600W | 20KHZ |
PU-MSW3200W | 3200W | 20KHZ |
PU-MSW4000W | 4000W | 20KHZ |
PU-MSW800W | 800W | 40khz |
20khz Ultrasonic Metal Battery Spot Welder Machine For Pouch Cell And Supercapacitor
