20KHZ 40KHZ Piezoelectric Ultrasonic Cleaner Transducer For Industry Heated Ultrasonic Cleaner
The 20khz 60W ultrasonic cleaning transducer oscillator is an energy transfer device that converts the input 220V voltage and electrical power into mechanical power and transmits it to the stainless steel plate, generating countless water waves in the water. The water waves wash the workpiece countless times to achie…
20KHZ 40KHZ Piezoelectric Ultrasonic Cleaner Transducer For Industry Heated Ultrasonic Cleaner
The 20khz 60W ultrasonic cleaning transducer oscillator is an energy transfer device that converts the input 220V voltage and electrical power into mechanical power and transmits it to the stainless steel plate, generating countless water waves in the water. The water waves wash the workpiece countless times to achieve the cleaning effect. The ultrasonic cleaning of the transducer oscillator mainly utilizes the piezoelectric effect of piezoelectric ceramic sheets, and the higher the piezoelectric voltage given, the greater the power.

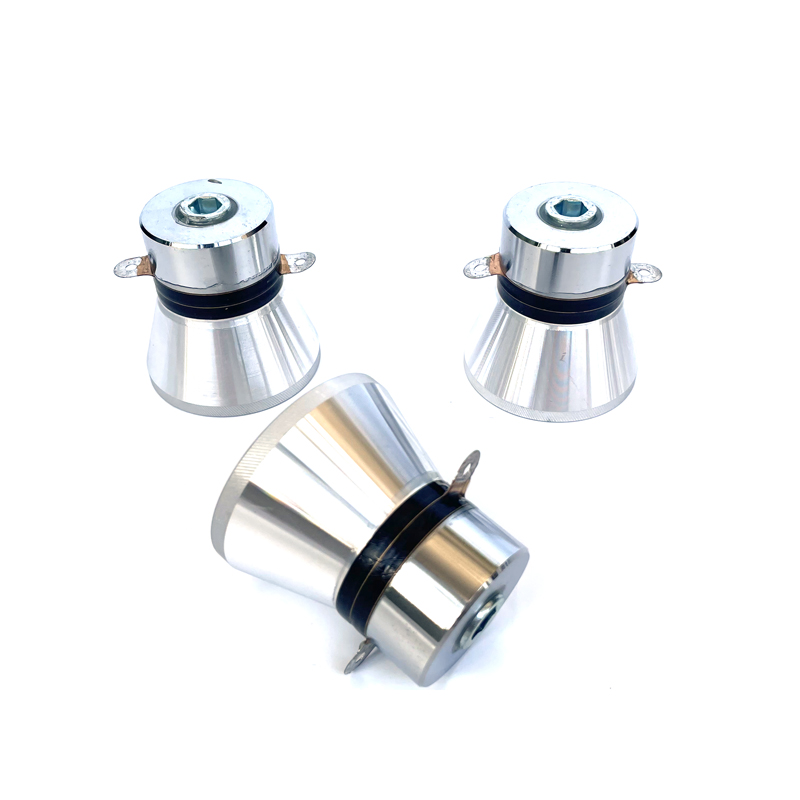

The characteristic of a 20khz 60W ultrasonic cleaning transducer oscillator is that it includes a front seat, a rear seat, a fixed bolt, and an ultrasonic generating component. The front seat and the rear seat are both equipped with a first through hole that runs through the upper and lower surfaces, and the fixed bolt is sequentially connected to the rear seat, the ultrasonic generating component, and the front seat. The ultrasonic generating component includes multiple sets of piezoelectric ceramics and electrode plates arranged at intervals, A flange structure extends radially outwards from the outer circumference of the front seat, and there are several second through-holes running through its upper and lower surfaces on the flange structure. A third through-hole is formed by an inward depression from the outer surface of the flange structure, and the third through-hole is connected to the second through-hole.
The application of 20khz 60W ultrasonic transducers is very extensive and can be used for ultrasonic cleaning. The mechanism of ultrasonic cleaning is to use physical effects such as cavitation, radiation pressure, sound flow, etc. when ultrasonic waves propagate in the cleaning solution, to mechanically peel off the dirt on the cleaning piece. At the same time, it can promote chemical reactions between the cleaning solution and the dirt, achieving the purpose of cleaning the object. Ultrasonic cleaning has been increasingly widely used in various industries such as industry, agriculture, household equipment, electronics, automobiles, rubber, printing, aircraft, food, hospitals, and medical research.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PU-UT-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PU-UT-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PU-UT-28120 PZT-4 | 66 | 720 | 28 | 10-20 | 7800 | 120 |
PU-UT-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
PU-UT-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PU-UT-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
PU-UT-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PU-UT-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PU-UT-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PU-UT-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
PU-UT-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PU-UT-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
PU-UT-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PU-UT-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PU-UT-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PU-UT-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PU-UT-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PU-UT-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PU-UT-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
20KHZ 40KHZ Piezoelectric Ultrasonic Cleaner Transducer For Industry Heated Ultrasonic Cleaner
