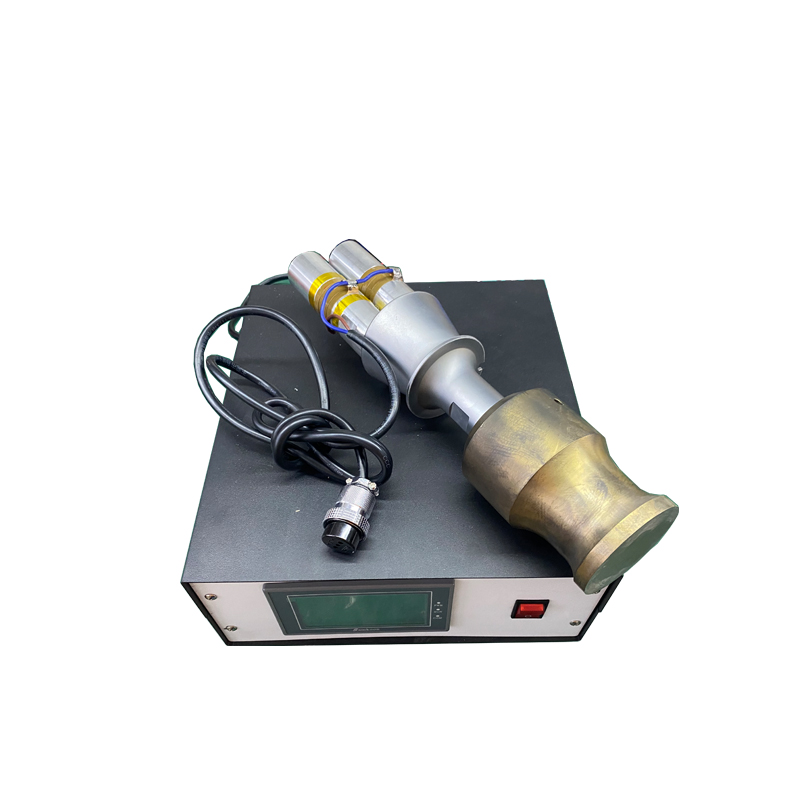

20K 2000W 15K 2600W Ultrasonic Mask Earloop Making Welder Generator With Transducer For Ultrasound Welding Machine
The future ultrasonic welding system will expand to more fields, such as new energy and new materials, and play a greater role. Ultrasonic welding, as an efficient and environmentally friendly welding technology, will play a more important role in future industrial production. With the continuous progress of technolo…
The future ultrasonic welding system will expand to more fields, such as new energy and new materials, and play a greater role. Ultrasonic welding, as an efficient and environmentally friendly welding technology, will play a more important role in future industrial production. With the continuous progress of technology and the continuous expansion of application fields, the future development prospects of ultrasonic welding systems will be even broader.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
标签：15K 2600W Ultrasonic Mask Earloop Making Welder Generator With Transducer, Ultrasonic Mask Earloop Making Welder Generator With Transducer
