![200W 33KHZ Ultrasonic Waves Piezoelectric Vibration Screen Generator For Ultrasonic Vibro Screen Separator Machine](https://www.desktopultrasoniccleaner.com/wp-content/uploads/2022/12/202212132058113.jpg)

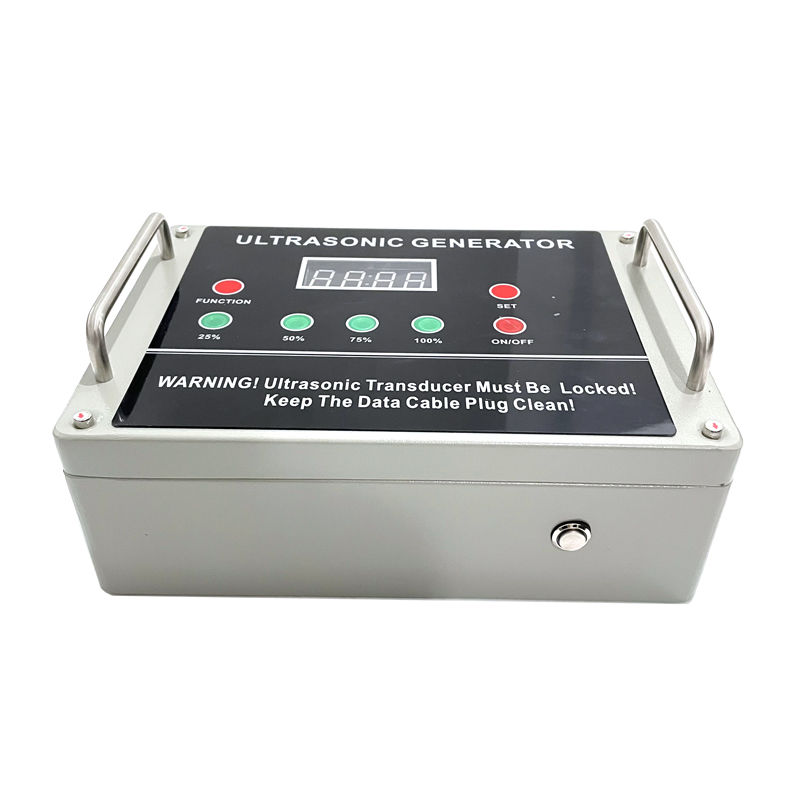

200W 33KHZ Ultrasonic Waves Piezoelectric Vibration Screen Generator For Ultrasonic Vibro Screen Separator Machine
The ultrasonic vibrating screen is mainly divided into two parts, the body and the ultrasonic resonant power supply system. The ultrasonic resonant power supply system is mainly composed of control power supply, oscillator and resonant ring. When the vibrating screen is running, the high-frequency point oscillation g…
The ultrasonic vibrating screen is mainly divided into two parts, the body and the ultrasonic resonant power supply system. The ultrasonic resonant power supply system is mainly composed of control power supply, oscillator and resonant ring. When the vibrating screen is running, the high-frequency point oscillation generated by the resonant power supply is converted into high-frequency sinusoidal longitudinal vibration wave by the oscillator, which is transmitted to the resonance ring to generate resonance, and then the resonance ring uniformly transmits the vibration to the screen surface, so that the screen wire of the screen mesh generates high-frequency vibration, and prevents raw material powder and particles from sticking to the screen wire. This is the basic principle of the design of the ultrasonic vibrating screen.
Type | Frequency(KHz) | Power(W) | transducer | |
PLS-ZDS100 | 28KHZ,33KHZ | 100W | 1 | |
PLS-ZDS200 | 28K | 200W | 1 | |
PLS-ZDS100-1 | 33KHZ | 200W | 2 |
标签:Piezoelectric Vibration Screen Generator, Ultrasonic Generator, ultrasonic resonant power supply system, ultrasonic vibrating scree, Ultrasonic Vibro Screen Separator Machine, Ultrasonic Waves Piezoelectric Vibration Screen Generator
