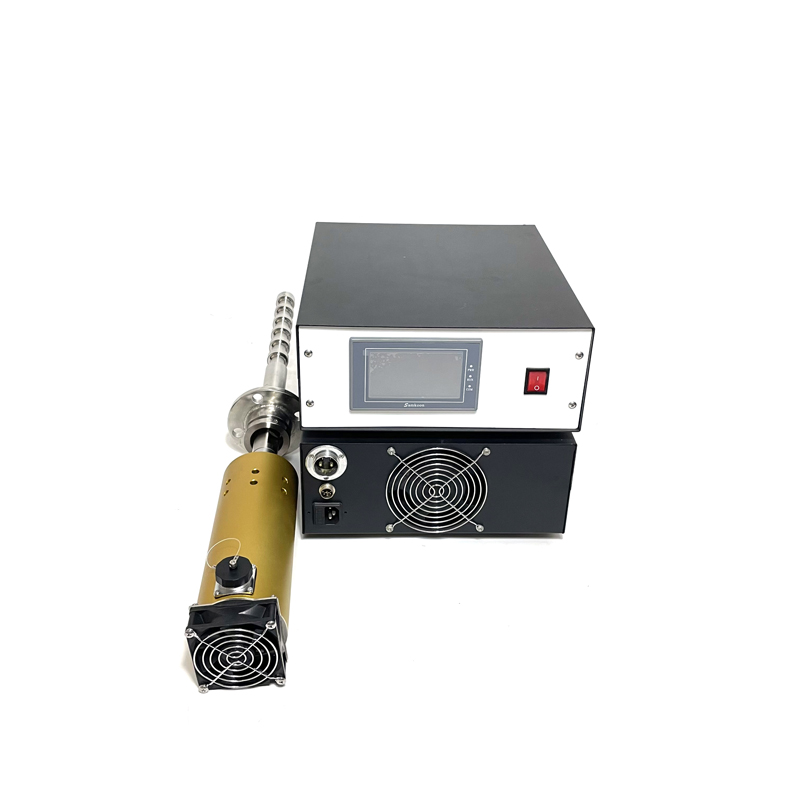

2000W Ultrasonic Cavitation Reactor Biodiesel Underwater Acoustic Ultrasonic Tubular Transducer
The vibrating rod of an ultrasonic transducer utilizes the dispersion and fragmentation effect of ultrasonic waves in liquid, causing cavitation in the liquid, thereby breaking solid particles or tissues in the liquid. The ultrasonic tool head is used to generate ultrasonic vibration and emit this vibration energy in…
2000W Ultrasonic Cavitation Reactor Biodiesel Underwater Acoustic Ultrasonic Tubular Transducer
The vibrating rod of an ultrasonic transducer utilizes the dispersion and fragmentation effect of ultrasonic waves in liquid, causing cavitation in the liquid, thereby breaking solid particles or tissues in the liquid. The ultrasonic tool head is used to generate ultrasonic vibration and emit this vibration energy into the liquid. The principle is to convert electrical energy into ultrasonic energy and transfer it to scale, water, and the inner wall of pipelines according to its own laws, so as to obtain a large amount of energy.
The ultrasonic transducer vibration rod is applied in emulsification, separation, homogenization, extraction, catalytic reaction, and other aspects to improve production capacity;
Tubular EquipmentType | Tubular TransducerType | Frequency(KHz) | UltrasoundOutput(W) | Total Length(mm) | Diameter(mm) | Static Capacity(pF±10%) |
PU-UE1 | US-61 | 15-28 | 1000 | 500 | Φ50-55 | 68000 |
PU-UE5 | US-25 | 15-28 | 1500 | 850 | Φ50-55 | 68000 |
PU-UE6 | US-16 | 15-28 | 2000 | 1100 | Φ50-55 | 132000 |
2000W Ultrasonic Cavitation Reactor Biodiesel Underwater Acoustic Ultrasonic Tubular Transducer
标签:2000W Ultrasonic Cavitation Reactor Biodiesel, Underwater Acoustic Ultrasonic Tubular Transducer
