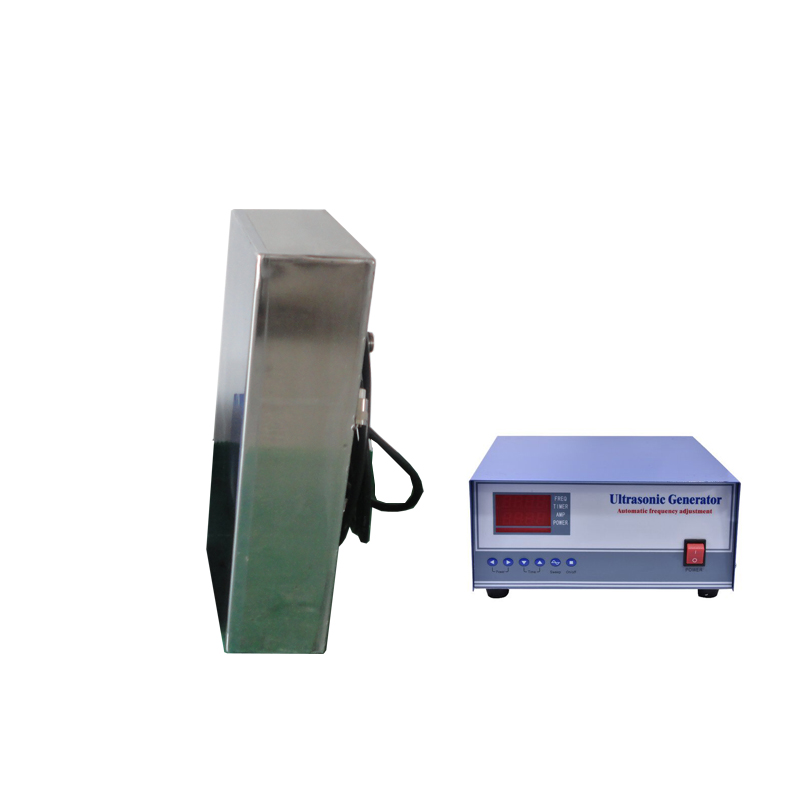

2000W 28KHZ Submersible Ultrasonic Transducers Immersible Underwater Ultrasonic Transducer Vibrator Plate

2000W 28KHZ Submersible Ultrasonic Transducers Immersible Underwater Ultrasonic Transducer Vibrator Plate

This series of Ultrasonic cleaning is composed of two parts: ultrasonic generator and ultrasonic vibration box. The vibration box unit can be arbitrarily combined according to various situations. It can be added to the existing common cleaning tank or designed and manufactured by itself. This model has the characteristics of acid and alkali resistance, corrosion resistance, flexible and convenient disassembly and assembly, and is applied in multiple industries such as semiconductor manufacturing, silicon wafer manufacturing, mold cleaning, magnetic materials, electroplating and chemical engineering.

Advantages of vibrating box of Ultrasonic cleaning:

Super penetrating power

Ultrasound can clean the inner wall of the workpiece through the outer wall (workpiece wall thickness: stainless steel, steel>6mm, plastic>12mm), and can perform ultrasonic cleaning, ultrasonic chemical treatment, ultrasonic chemical corrosion, etc. from the outside through anti-corrosion containers (pp plastic, etc.).

Ultra long effective cleaning distance

The effective cleaning distance is up to 1M, and there is no significant decrease in cleaning ability. For workpieces that are difficult to clean, we can easily clean them.

The service life is greater than 10000h and there is no significant decrease in cleaning capacity.
The ultrasonic conversion efficiency is as high as 95%.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
