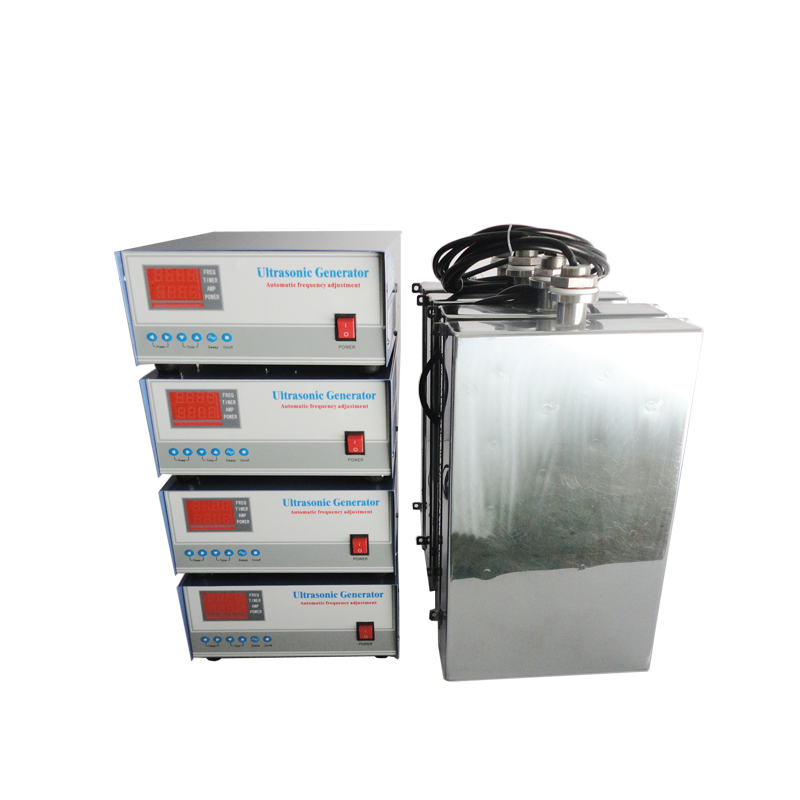

1800W 28KHZ Submersible Underwater Ultrasonic Vibration Cleaning Transducers With Generator

The vibrating plate box of Ultrasonic cleaning adopts digital ultrasonic technology and electronic components from well-known Japanese brands. The product has the characteristics of reasonable structure, stronger ultrasonic power, stable and reliable operation, high working efficiency, high cleanliness after workpiec…

Send Inquiry

Chat Now

1800W 28KHZ Submersible Underwater Ultrasonic Vibration Cleaning Transducers With Generator

2、 Basic structure of vibrating plate box of Ultrasonic cleaning

The entire device consists of three basic parts:

Ultrasonic generator (electrical control box)
Ultrasonic transducer (its function is to convert electrical energy into mechanical kinetic energy)
Ultrasonic vibration plate box body (all stainless steel material)
Cable connection line (signal connection between ultrasonic generator and ultrasonic transducer)

III. Application scope of vibrating plate box of Ultrasonic cleaning:

Mechanical steel and iron hardware parts are degreased using alkaline effective cleaning agents.
Phosphating of mechanical steel and iron hardware parts, using a three in one cleaning agent of degreasing, rust removal, and phosphating.
Pure aluminum and aluminum alloy parts, using neutral aluminum surface cleaning agent.
Use neutral cleaning agents for copper and other non-ferrous metal parts.
Electroplating hardware parts, using metal degreaser and polishing wax remover.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
