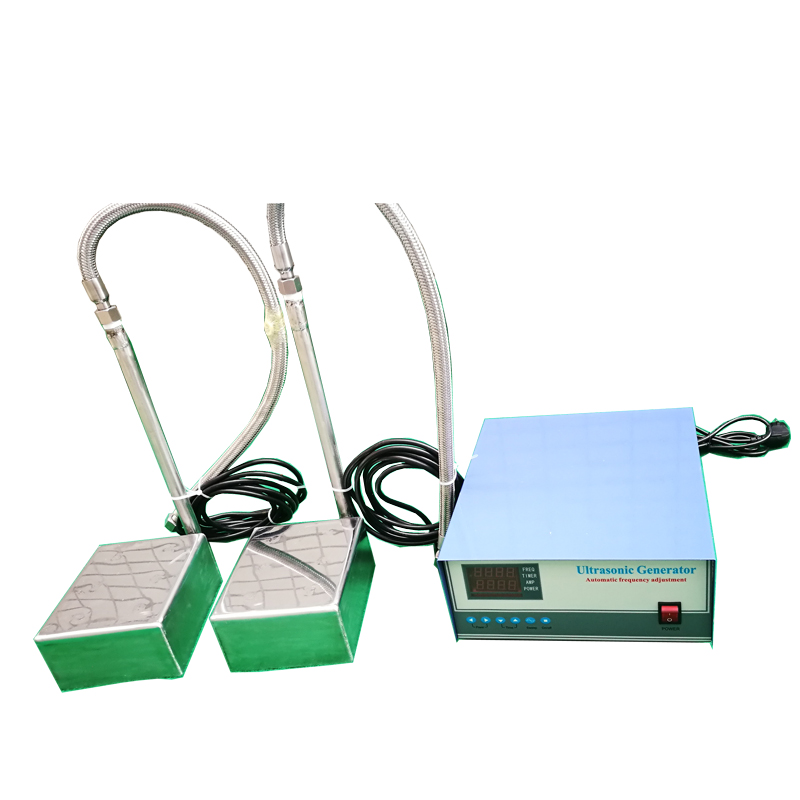

1800W 28KHZ 40KHZ Underwater Ultrasonic Piezoelectric Transducer Ultrasonic Immersible Transducer Box Cleaning Machine
ltrasonic vibrating plate is composed of vibrating plate and ultrasonic generator. When the standard Ultrasonic cleaning is not suitable for special operating environment, in addition to special specifications and models, input vibrating plate equipment can also be used to refit into Ultrasonic cleaning, which can sa…
ltrasonic vibrating plate is composed of vibrating plate and ultrasonic generator. When the standard Ultrasonic cleaning is not suitable for special operating environment, in addition to special specifications and models, input vibrating plate equipment can also be used to refit into Ultrasonic cleaning, which can save equipment cost and achieve cleaning effect.
The ultrasonic vibration plate is made of all stainless steel 304 or 316, with alkali and acid resistance. The surface of the vibration plate is plated with hard chromium. The ultrasonic transducer is equipped with high-quality and high-performance equipment, with high electro-acoustic conversion efficiency. The assembly layout is flexible, and the ultrasonic radiation surface can be set at the bottom, side, or top of the cleaning tank according to requirements. Ultrasonic vibration plates can be customized according to customer requirements, mainly used for cleaning electroplating parts, clock and watch parts, hardware and mechanical parts, electronic equipment, polyester filter elements, semiconductor silicon wafers, tools, lenses, spectacle frames, jewelry, glass, utensils and other industries, and are widely used. Basic principle of ultrasonic vibration plate: The application and working principle of ultrasonic vibration plate is the high-frequency oscillation data signal sent out by the ultrasonic generator, which is converted into high-frequency mechanical oscillation by a transducer and disseminated to the medium. In the cleaning solvent, ultrasonic waves radiate forward due to the density of the cleaning solution, causing the liquid to flow and produce countless small bubbles. The small bubbles (cavitation nuclei) distributed in the liquid vibrate under the influence of the sound field, When the sound pressure reaches the specified value, the bubbles rapidly increase and then suddenly close. After the bubbles close, a shock wave is generated, forming thousands of atmospheric pressures around them, damaging insoluble dirt and distributing them in the cleaning solution. When group particles are wrapped in oil and adhere to the surface of the cleaning part, the oil is emulsified, and solid particles detach, thus achieving the purpose of purifying the surface of the cleaning part.
Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
PU-UITP300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
PU-UITP600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
PU-UITP1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
PU-UITP1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
PU-UITP1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
PU-UITP1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
PU-UITP2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
PU-UITP2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
PU-UITP3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
PU-UITP5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
