1800W 25KHZ/28KHZ Piezoelectric Ultrasonic Extraction Tubular Ultrasonic Transducer With Transducer Generator

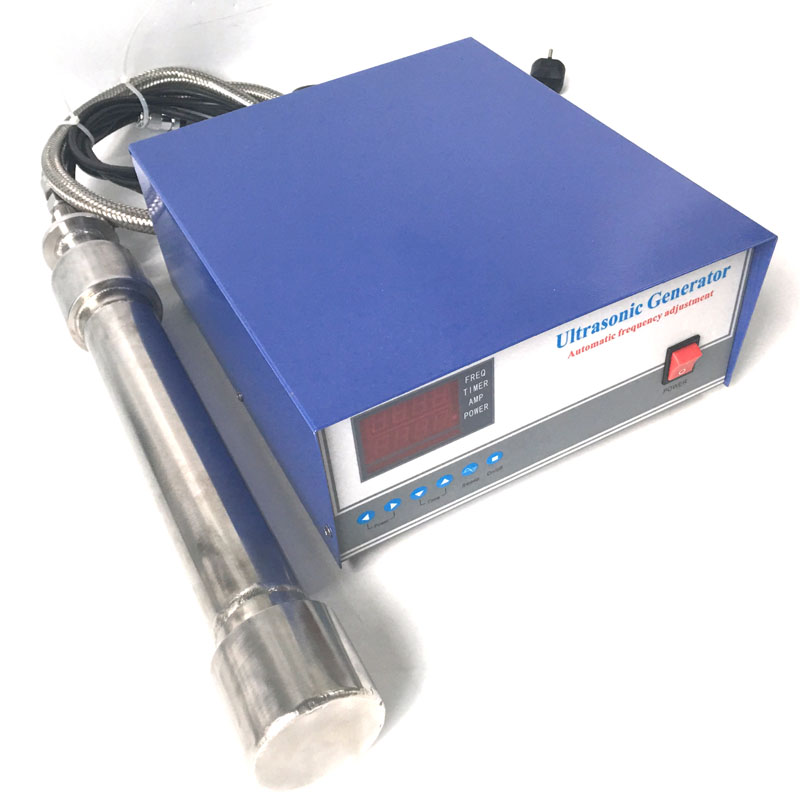

The rod type ultrasonic cleaning machine includes an ultrasonic generator, a transducer, an ultrasonic energy collector, and a cleaning tool. The ultrasonic generator is electrically connected to the transducer, and the transducer, the ultrasonic energy collector, and the cleaning tool are fixedly connected in sequen…
The rod type ultrasonic cleaning machine includes an ultrasonic generator, a transducer, an ultrasonic energy collector, and a cleaning tool. The ultrasonic generator is electrically connected to the transducer, and the transducer, the ultrasonic energy collector, and the cleaning tool are fixedly connected in sequence. Due to the fact that the cleaning tool is facing the rotating shaft with the workpiece installed, it emits a strong focused ultrasonic wave and radiates on the workpiece to be cleaned, which can cause strong ultrasonic cavitation around the workpiece to clean the blind holes and narrow gaps on the workpiece, resulting in high cleaning efficiency.
| Tubular EquipmentType | Tubular TransducerType | Frequency(KHz) | UltrasoundOutput(W) | Total Length(mm) | Diameter(mm) | Static Capacity(pF±10%) |
| PU-UE1 | US-61 | 15-28 | 1000 | 500 | Φ50-55 | 68000 |
| PU-UE5 | US-25 | 15-28 | 1500 | 850 | Φ50-55 | 68000 |
| PU-UE6 | US-16 | 15-28 | 2000 | 1100 | Φ50-55 | 132000 |
标签：25KHZ/28KHZ Piezoelectric Ultrasonic Extraction Tubular Ultrasonic Transducer, Ultrasonic Extraction Tubular Ultrasonic Transducer
