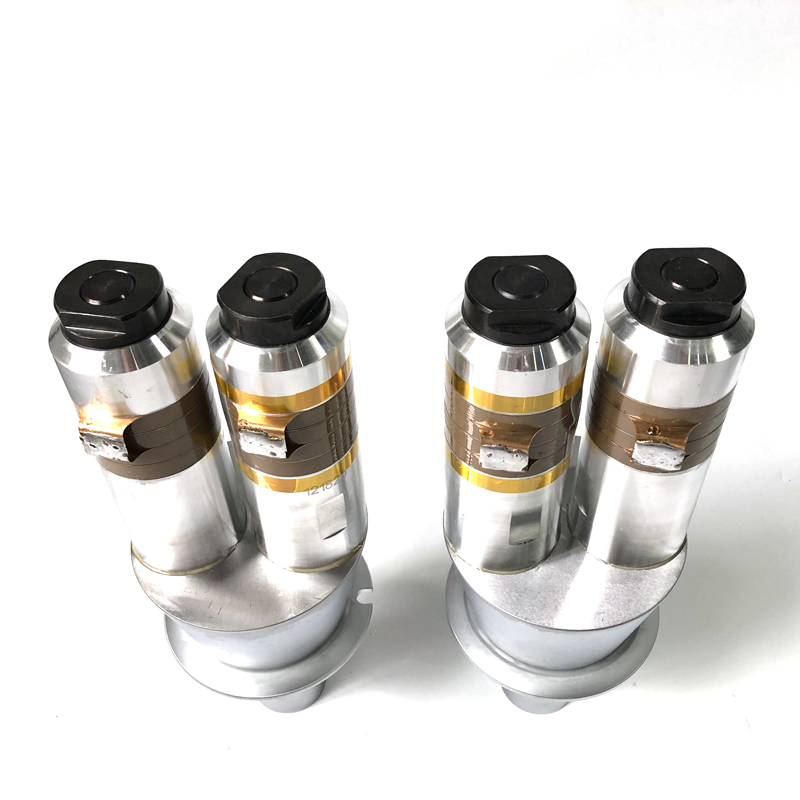

15K 4200w High Power Ultrasonic Welding N95 Masks Transducer Converter
ultrasonic welding transducer is used to transmit ultrasonic wave to plastic processing parts through the welding head, so that the two plastic joint surfaces will have severe friction due to the action of ultrasonic wave, and the friction heat will melt the plastic joint surface to complete bonding. This technology …
15K 4200w High Power Ultrasonic Welding N95 Masks Transducer Converter
ultrasonic welding transducer is used to transmit ultrasonic wave to plastic processing parts through the welding head, so that the two plastic joint surfaces will have severe friction due to the action of ultrasonic wave, and the friction heat will melt the plastic joint surface to complete bonding. This technology has the advantages of fast speed, solid weld, and more importantly, it can automate the production and processing of plastic products. ultrasonic plastic welding machine can be used for plastic welding, embedding, forming, riveting, spot welding, cutting, sewing and other operations. As long as the welding head is changed, the machine can be used for many applications.
Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
15K 4200w High Power Ultrasonic Welding N95 Masks Transducer Converter
