1500W Dual Frequency Industrial Submersible Ultrasonic Cleaning Machine With Lcd Display Generator

1500W Dual Frequency Industrial Submersible Ultrasonic Cleaning Machine With Lcd Display Generator

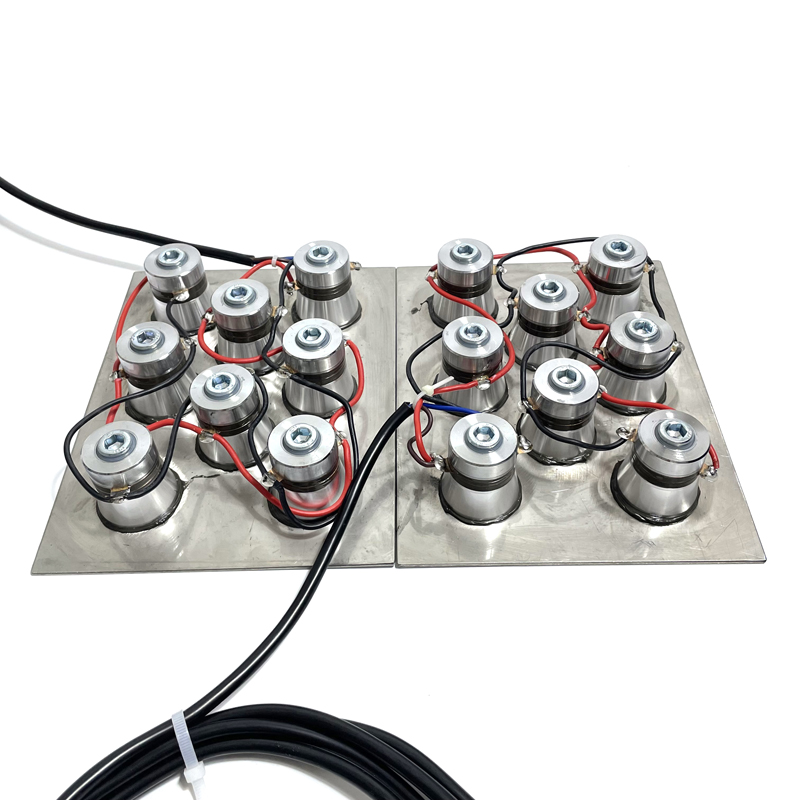

The ultrasonic vibration plate (vibration plate) consists of two parts: an ultrasonic transducer attached to a fully sealed stainless steel vibration box and an ultrasonic generator. When the trough type ultrasonic cleaning equipment is not suitable for specific work needs, the ultrasonic vibration plate is not only suitable for self built cleaning tanks or existing cleaning tanks with ultrasonic function, but also suitable for the maintenance and replacement of existing ultrasonic cleaning equipment, suitable for the installation of ultrasonic in large Ultrasonic cleaning systems, and also suitable for the installation of ultrasonic in ultrasonic extraction equipment and ultrasonic sewage treatment equipment.

Main technical parameters of ultrasonic vibration plate:

Ultrasonic vibration plate shell material: SUS304/316 stainless steel, titanium plate, etc., can be strengthened by hard chromium plating on the vibration surface, extending its service life.
Ultrasonic vibration plate size: customized according to customer requirements.
Ultrasonic frequency: 20KHz, 25KHz, 28KHz, 40KHz, 68KHz, 80KHz, 120KHz, 170KHz, etc.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
