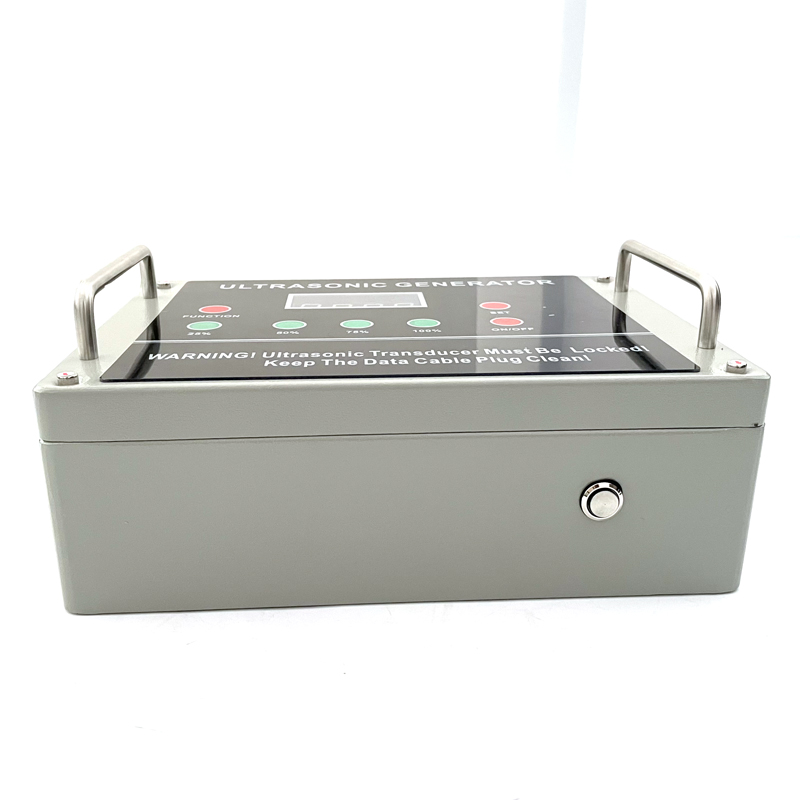

100W 28KHZ/33KHZ Variable Frequency Piezoelectric Vibration Screen Generator For Vibrating Filter Sieve Sifter
The power generator of the ultrasonic vibrating screen is one of the core components of the equipment. The circular vibrating machine keeps improving the production technology with the times, and makes continuous improvement on energy consumption, circuit and use defects, so as to make its work more reliable. Here is…
The power generator of the ultrasonic vibrating screen is one of the core components of the equipment. The circular vibrating machine keeps improving the production technology with the times, and makes continuous improvement on energy consumption, circuit and use defects, so as to make its work more reliable. Here is the instruction manual of the power generator of the ultrasonic vibrating screen.
The power generator of the ultrasonic vibrating screen has a timing function, which can realize the timing on/off operation. The ultrasonic frequency and output power can be adjusted, and the digital display is very intuitive. With overload and overheat protection functions, it can realize warning under abnormal conditions. The power supply has a high energy utilization rate of 90-98%, which is very energy-saving. If the user has special requirements, all imported electronic components and circuits can be selected to further improve the reliability.
The high-frequency electrical oscillation generated by the power generator of the ultrasonic vibrating screen is converted into high-frequency sinusoidal longitudinal oscillation wave by the oscillator. These oscillation waves are transmitted to the resonance ring to make the resonance occur in the resonance ring, and then the vibration is uniformly transmitted to the screen surface by the resonance ring. The materials on the screen mesh are subject to low-frequency cubic vibration and ultrasonic vibration at the same time, which can not only prevent mesh plugging, but also improve the screening output and quality. Ultrasonic screening system is a simple, practical and reliable screening system, which is an effective solution to the current mesh blockage. It can be widely used in pharmaceutical, metallurgical, chemical, mineral processing, food and other industries that require fine screening and filtering. With high screening and filtering accuracy, it effectively solves screening problems such as blocking mesh due to agglomeration, static electricity and strong adsorption, which is a major technical breakthrough in the domestic screening industry.
Type | Frequency(KHz) | Power(W) | transducer | |
PLS-ZDS100 | 28KHZ,33KHZ | 100W | 1 | |
PLS-ZDS200 | 28K | 200W | 1 | |
PLS-ZDS100-1 | 33KHZ | 200W | 2 |
标签:Piezoelectric Vibration Screen Generator, Ultrasonic Generator, ultrasonic vibrating scree, Variable Frequency Piezoelectric Vibration Screen Generator
